Why NDT INSTITUTE IN CHENNAI

NON DESTRUCTIVE TESTING – NDT INSTITUTE can be used to:

Weeding out defective raw materials /components at the incoming stage itself instead of accepting and paying for it

Detect defects that may occur during the manufacturing process before spending time and money on further processing of the defective materials

Improve manufacturing techniques by inspecting the product during processing operations to maintain uniform quality and standard

Detecting discontinuities at final stages of manufacturing to improve product reliability and safety during operation

In-service inspection to detect service induced flaws

Ensure prevention of accidents and promote safety for workers and equipment during over hauling and maintenance Enhance the reputation of manufacturer as producer of quality products

NDT TRAINING IN CHENNAI, NDT INSTITUTE IN CHENNAI, NDT COURSE IN CHENNAI,Non-destructive testing is the branch of engineering concerned with all methods of detecting and evaluating flaws in materials. Flaws can affect the serviceability of the material or structure, so NDT is important in guaranteeing safe operation as well as in quality control and assessing plant life. The flaws may be cracks or inclusions in welds and castings, or variations in structural properties which can lead to loss of strength or failure in service.

Non-destructive testing is used for in-service inspection and for condition monitoring of operating plant. It is also used for measurement of components and spacings and for the measurement of physical properties such as hardness and internal stress.

The essential feature of NDT is that the test process itself produces no deleterious effects on the material or structure under test.

The subject of NDT has no clearly defined boundaries; it ranges from simple techniques such as visual examination of surfaces, through the well-established methods of radiography, ultrasonic testing, magnetic particle crack detection, to new and very specialised methods such as the measurement of Barkhausen noise and positron annihilation.

NDT methods can be adapted to automated production processes as well as to the inspection of localised problem areas.

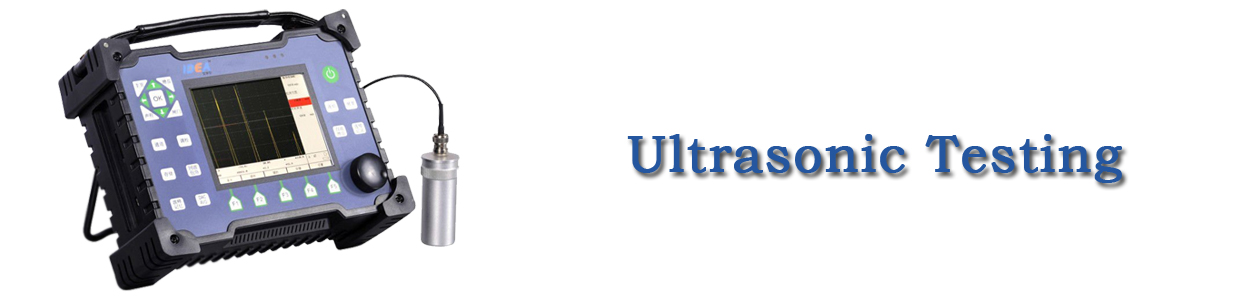

NDT INSTITUTE IN CHENNAI - Ultrasonic Testing (UT)

It is a non-destructive testing (NDT) method in which beams of high frequency sound waves that are introduced into the material being tested are used to detect surface and sub-surface flaws. The sound waves travel through the materials with some attenuation of energy and are reflected at interfaces. The reflected beam is detected and analyzed to define the presence and location of flaws.

NDT INSTITUTE IN CHENNAI - Ultrasonic waves are almost completely reflected at metal gas interfaces. Partial reflection occurs at metal liquid or metal solid interfaces, with the specific percentage of reflected energy depending mainly on the ratios of certain properties of the matter on opposite sides of the interface.

Cracks, laminations, shrinkage, cavities, bursts, flakes, pores, bonding faults and other discontinuities that can act as metal-gas interfaces can be easily detected. Inclusions and other inhomogeneities in the metal being inspected can also detected by causing partial reflection or scattering of the ultrasonic waves, or by producing some other detectable effect on the ultrasonic waves.

Most of the ultrasonic inspection instruments detect flaws by monitoring one or more of the following: Reflection of energy from metal-gas interfaces, metal-liquid interfaces or discontinuities within the metal itself

Time of transit of a sound wave through the test piece from the entrance point at the sending (transmitting) transducer to the exit point at the receiving transducer, and Attenuation of the beam of sound waves by absorption and scattering within the test piece.

Ultrasonic methods

Ultrasonic methods of NDT use beams of mechanical waves (vibrations) of short wavelength and high-frequency, transmitted from a small probe and detected by the same or other probes. Such mechanical waves can travel large distances in fine-grain metal, in the form of a divergent wave with progressive attenuation.

The frequency is in the range 0.1 to 20 MHz and the wavelength in the range 1 to 10 mm. The velocity depends on the material and is in the range 1000-6000 m/s.

The technique detects internal, hidden discontinuities that may be deep below the surface. Transducers and coupling wedges are available to generate waves of several types, including longitudinal, shear and surface waves. Applications range from thickness measurements of thin steel plate to internal testing of large turbine rotors.

Most non-porous, resilient materials used for structural purposes (steel, aluminium, titanium, magnesium and ceramics) can be penetrated. Even large cross-sections can be tested successfully for minute discontinuities.

Ultrasonic testing techniques are widely accepted for quality control and materials testing in many industries, including electric power generation, production of steel, aluminium and titanium, in the fabrication of airframes, jet engine manufacture and ship building.

Ultrasonic advanced methods

(TOFD, phased array etc)

There have been many developments and refinements to the fundamental ultrasonic technique to cater for improved performance and/or results.

For example, AUT refers to Automated Ultrasonic Testing. Although this is a generic term which relates to the computerised collection of ultrasonic data, the three letter acronym AUT is now used to refer specifically to the automated ultrasonic inspection of pipe girth welds. Such systems have two sets of ultrasonic probes scanned circumferentially on either side of the weld. The sets of probes are selected to provide coverage of specific zones of the weld and the fusion face.

Time-of-Flight Diffraction – TOFD – is an ultrasonic technique which measures the time of flight of a pulse as it travels from a transmitting probe to a receiving probe. Divergent beams are used and it is necessary to scan the TOFD probe pair over the flaw for the technique to function correctly.

What distinguishes the technique from a standard pitch-catch configuration is the D which stands for diffraction. The technique relies on the detection of the diffracted sound wave which is generated from both the top and bottom edges of a planar defect.

The time of arrival of the diffracted signals from the flaw tips is measured with respect to the probe firing time. Time measurement can be done to great accuracy. The combination of this accuracy and the fact that the scattering source is the flaw tip forms the basis of a highly accurate sizing technique.

Phased array is the name given to a special type of ultrasonic probe.

An array is a group of transmitters, receivers or transmitter/receivers, generally called array elements. When used as a transmitter, firing the elements at different times can lead to interference between the sound waves produced by each individual element. This interference can be both constructive (waves add together) and destructive (waves cancel).

It is this interference which gives the array probe its main advantage – the ability to change beam shape and angle depending upon the timing at which elements are fired. When an array is used as a receiver, the difference between the times at which a pulse arrives at each array element contains information about the location of the pulse source.

Ultrasonic thickness gauging

Because in ultrasonic pulse-echo testing the time of travel of the pulse to a reflector is measured and displayed, it is a very simple adaptation to use this measurement as a thickness gauge. Low-cost small hand-held instruments are available, and the usual read-out is a digital display rather than an oscilloscope screen. Such thickness gauges require either calibration or a knowledge of the ultrasonic velocity in the material under test.

Usually, pulsed beams of ultrasound are used and in the simplest instruments a single probe, hand-held, is placed on the specimen surface. An oscilloscope display with a time-base shows the time that it takes for an ultrasonic pulse to travel to a reflector (a flaw, the back surface, or other free surface) in terms of distance across the oscilloscope screen – the so-called A-scan display. The height of the reflected pulse is related to the flaw size as seen from the transmitter probe. The relationships of flaw size, flaw distance and flaw reflectivity are complex and considerable skill is required to interpret the display.

Complex multiprobe systems are also used with mechanical probe movement and digitisation of the signals, followed by computer storage; methods of computer interpretation are developing rapidly.

There are several forms of mechanical vibration, depending on the direction of particle movement in the wave motion, and so there are several forms of ultrasonic waves, the most widely used in NDT being compressional and transverse (shear) waves.

By suitable design of probe, ultrasonic beams can be introduced into solid material at almost any angle.

Compressional waves will also travel through liquids and a common technique is to immerse the specimen in a large tank and use a stand-off probe with a mechanised movement. With such equipment, alternative methods of displaying the signals are possible and a two-dimensional ultrasonic image can be produced (B-scan and C-scan displays).

Generally, a single probe acts as both transmitter and receiver, so that inspection can be done from one side only of the specimen. Large-grain materials such as austenitic steel welding, copper castings etc produce severe attenuation and scattering and are at present difficult to inspect with ultrasound, but large thicknesses of fine-grain material such as forged steel can be tested without difficulty.

Because the usual indication of a flaw is a pulse on an oscilloscope trace, flaws must be characterised and also sized. New techniques such as time-of-flight diffraction, TOFD, have been developed to assist this technique.

Ultrasonic attenuation and ultrasonic velocity measurements are used to study various material properties.

The use of ultrasonics for sizing flaws

Once flaws have been detected it is often desirable to determine their size. For flaws smaller than the ultrasonic beam width, a pseudo-sizing can be obtained by comparing the flaw signal amplitude with that of a reference reflector (flat-bottomed or side-drilled hole) at the same range. When the flaw size is greater than the ultrasonic beam width, conventional probe movement sizing techniques can often be used to provide an estimate of flaw size. The maximum amplitude technique uses a measure of the probe movement between the maximised signals from flaw extremities to size flaws. The 6 dB and 20 dB drop techniques use the reduction in the signal amplitude from the flaw as the probe passes over the edge of the flaw as an indicator of flaw dimensions. However, the interaction between the ultrasonic beam and flaw, depending as it does on flaw nature and orientation, limits the effectiveness of these techniques, when dealing with complex and mis-orientated flaws.

Techniques which make use of the diffracted signal from the flaw extremities to locate and size flaws are most effective in sizing planar flaws. The time-of-flight diffraction (TOFD) technique uses the ultrasonic transit time between probe(s) and flaw extremities to locate and size flaws. Flaw sizing accuracies of better than ±2 mm can be achieved with optimised techniques (see also Ultrasonic advanced methods).

NDT – NDT INSTITUTE IN CHENNAI - UT - Applicability

Ultrasonic testing or inspection (UT) is used for quality control and materials testing in all major industries. This includes Ultrasonic testing of castings, forgings, plates, extruded components, weld joints, electrical and electronic component manufacturing, production of steel, aluminum and titanium, fabrication of structures such as air frames, pressure vessels, ships, bridges, motor vehicles, machinery and jet engines. In service ultrasonic testing for preventive maintenance is used for detecting impending failure of rail road rolling stock axles, press columns, earth-moving equipment, mill rolls, mining equipment and other machines and compo nets. The flaws to be detected include voids, cracks, inclusions, pipe, laminations, bursts and flakes. They may be inherent in the raw materials, may result from fabrication and heat treatment, or may occur in service from fatigue, corrosion or other causes. Ultrasonic testing can also be used to measure thickness of metal sections during manufacturing and maintenance inspections.

NDT Limitations

Manual Ultrasonic Flaw detection requires careful attention by experienced technicians Extensive technical knowledge is required for the development of Ultrasonic testing procedures. Ultrasonic inspection procedure Parts that are rough, irregular in shape, very small or thin or not homogenous are difficult to be tested Discontinuities that are preset in a shallow layer immediately beneath the surface may not be detectable.

Couplants are needed to provide effective transfer of ultrasonic wave energy between transducers and parts being tested.

Reference standards are needed, both for calibrating the equipment and for characterizing flaws.

NDT INSTITUTE IN CHENNAI , CHENNAI,TAMIL NADU, INDIA

State of the Art Ultrasonic flaw detection equipments with built-in DGS curves, AVG, AWS flaw sizing techniques for weld inspections

Transducers suitable for critical inspections, most sensitive, high temperature and high attenuative materials inspection applications

NDT - T-K-Y joints testing experts

Experienced in house ASNT NDT Level III consultants and experts for providing techniques establishment, procedure preparation, approval and consultancy services

ASNT NDT Level III trainers for conducting in house or external NDT Level 1, 2 training and certification courses on Ultrasonic testing and other NDT inspection methods. Read more about Ultrasonic Testing Personnel Certifications.

Ultrasonic inspection professionals qualified and certified to Level I, II as per ASNT recommended practice SNT-TC-1A and IS:13805 by Indian Society for Nondestructive testing (ISNT) and are approved by leading third party inspection authorities.

Strong team of NDT professionals to provide ultrasonic inspection services across India

The scheme offers three levels of training and qualification:

Level I – NDT Level should be qualified to properly perform specific calibrations, specific NDT, and specific evaluation for acceptance or rejection determination according to written instruction and to record results under the supervision of Level II or III personnel.

Level II – NDT Level II should be qualified to set up and calibrate equipment, interpret and evaluate results with respect to applicable codes, standards, and specification and be able to organize and report the results of NDT. He is familiar with scope and limitation of the method he is qualified and responsible for on the job training of trainees and NDT Level I personnel.

Based on the requirements of qualification level and the applicable qualification standards.

NDT Examination

All NDT examinations (general, specific, and practical) will be conducted at MTL School of NDT Exam Centre. However, other exam centers can be appointed upon approval of MTL Qualification and Certification Department. To pass the exam, the trainee must achieve a grade of at least 70% in each exam and 80% in overall. Examination procedures comply with the requirements of the applicable qualification or certification standard.

NDT Certification

After passing the required examination, the trainee will receive a certificate indicating the name of trainee, qualification standard (ANSI/ASNT CP-189-2001 and ASNT/SNT-TC-1A), NDT method, level of qualification, technique, certificate number, date of issue, date of expiry.

Authorized signatories:

1. MTL Head of Qualification and Certification.

2. Current ASNT Level III Certificate Holder.All certificates must include the MTL Embossed Golden Stamp.Starting from the date of issue, the validity of the certificate shall be in compliance with the qualification standard.

Sales and Supply of Ultrasonic flaw detectors, probes, cables, calibration blocks and other accessories. Read more about sales of Ultrasonic equipments

Ultrasound is also widely used in medical diagnostics and Dr Francesco Simonetti in the NDT Group is investigating a range of potential new applications for the technology. X-ray mammography is currently regarded as the gold standard in breast cancer screening; however, its effectiveness is not satisfactory, especially in younger women. A mammogram reveals the presence of a mass thanks to the contrast between the high density of a cancer mass relative to that of the host tissue. In young women healthy breast tissue tends to be dense thus reducing the overall contrast and hence sensitivity. On the other hand, ultrasound can measure other forms of mechanical contrast which tend to be high also in young women. New imaging methods developed at Imperial have shown that modern ultrasound technology can be engineered in a highly accurate tomography modality that can achieve resolution comparable to X-ray CT but without ionizing radiation, thus paving the way for a new gold standard for the early detection of breast cancer.

Professor Cawley is the Lead Academic of the EPSRC-sponsored Research Centre for Non-Destructive Evaluation which was established at Imperial College London in 2003, in collaboration with a number of other academic institutions and industry partners. The Centre is an important link in the supply chain between academia and industry, successfully transferring technological advances arising from university research to their eventual practical application in industry. Sponsors and collaborators include Shell, BP, Petrobras, Los Alamos National Lab, and the Karmanos Cancer Institute.

The training courses consist of several modules that cover each aspect of the NDT method. Training includes lectures, quizzes and practicals and is conducted in a class room environment as per SNT-TC-1A. Our training program places significant emphasis on practicals which we believe are very important for NDT students (this is why we do not offer any internet based NDT training programs). Our goal is to spend approximately half of the time on practicals for UT, MT, PT and ECT methods.

Training covers the three major areas required by SNT-TC-1A, CP-189 and NAS 410

GENERAL - Theory, Techniques, Applications

SPECIFIC - Procedures, Codes and Standards

PRACTICAL - Instrumentation, Calibrations, Evaluation, Flawed Specimens

Magnetic Particle Testing Training Level I and II

Liquid Penetrant Testing Training Level I and II

Ultrasonic Testing Training Level I

Ultrasonic Testing Training Level II

Eddy Current Testing Training Level I

Eddy Current Testing Training Level II

Radiography Testing II Limited Film Interpretaion

Visual and Optical Testing Training Level I and II

Intro to NDT (PT, MT, RT, UT, ET and VT)

Phased Array Level II*

Time of Flight Diffraction (TOFD)

*The second week of PAUT Level II class also includes training on UT in lieu of RT

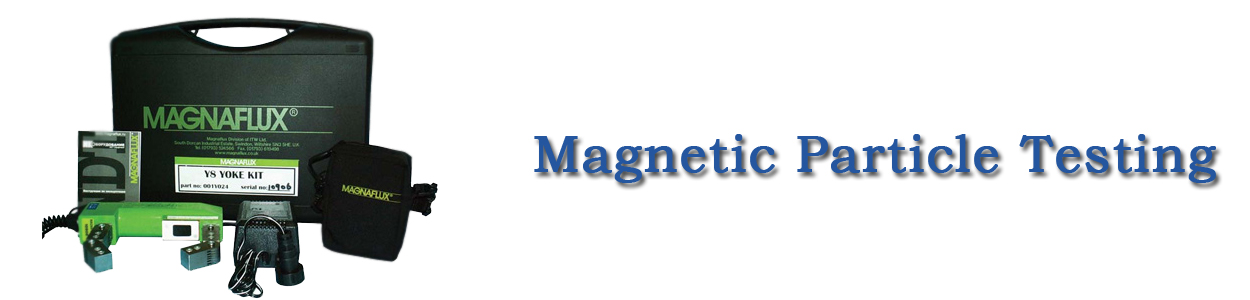

NDT INSTITUTE IN CHENNAI - NDT - Magnetic Particle Testing (MPT/MT)

Magnetic particle testing or MPT is a nondestructive testing method for locating surface and near surface discontinuities in ferromagnetic materials. It depends for its operation on the fact that when the material or part under test is magnetized, discontinuities that lie in a cause leakage field to the direction of the magnetic field will cause a leakage field to be formed at and above the surface of the part. The presence of this leakage field, and therefore the presence of the discontinuity, is detected by the use of finely divided ferromagnetic particle applied over the surface, some of the particle being gathered and held by the leakage field. This magnetically held collection of particle forms an outline of the discontinuity and generally indicates its location, size, shape and extent. Magnetic particles are applied over a surface as dry particles, or as wet particle in a liquid.

Ferromagnetic materials include most of the iron, nickel and cobalt alloys. These materials lose their ferromagnetic properties above a characteristic temperature called the Curie point which is approximately 76 degree C for most of the ferromagnetic material.

NDT – MPI Applications

The principal industrial uses of magnetic article testing are final inspection, receiving inspection, in process inspection and quality control, maintenance and overhaul in the transportation industries, plant and machinery maintenance and inspection of large components.

NDT – MPI Limitations

Thin coatings of paint and other non-magnetic coverings, such as plating; adversely affect sensitivity of magnetic particle inspection. Other limitations are:

Magnetic particle inspection methods will work only on ferromagnetic materials.

For best results, the magnetic field must be in a direction that will intercept the principle plane of the discontinuity. Sometimes this requires two or more sequential inspections. With different magnetizations.

Demagnetization following magnetic particle testing is often necessary.

Post cleaning to remove remnants of the magnetic particle clinging to the surface may be required after testing and demagnetization.

Exceedingly large currents sometimes are required for very large parts.

Care is necessary to avoid local heating and burning of finished parts or surface at the points of electric contact.

Although magnetic particle indications are easily seen, experience and skill in interpreting their significance are needed.

Magnetic particle inspection facilities at 'NDT INSTITUTE & INSPECTION TECHNOLOGY LTD.,Chennai, Tamil Nadu, India.

Specialized magnetic particle inspection equipments for NDT applications

Modern high amperage magnetic particle testing equipments including electromagnetic yokes

Powerful mobile type of prod equipments

6000 amperes stationery wet horizontal type equipments for inspection of mass production components, coils, and solenoids, central conductors with AC, HWDC and FWDC facilities.

High intensity black light kits for fluorescent inspection and demagnetizing equipments Magnetic particle testing professionals are qualified and certified to MT Level I, II as per ASNT recommended practice SNT-TC-1A, IS:13805 certified by Indian Society for Nondestructive testing (ISNT) and are approved by leading third party inspection authorities

Experienced in house ASNT NDT Level III consultants and experts for providing techniques establishment, procedure preparation, approval and consultancy services.

ASNT NDT Level III trainers for conducting in house or external NDT Level 1, 2 training and certification courses on Magnetic particle testing and other NDT inspection methods. Read more about Magnetic Particle Testing personnel Certifications.

Strong team of NDT professionals to provide magnetic particle testing services across India

Magnetic particle inspection (MPI)

This method is used for the detection of surface and near-surface flaws in ferromagnetic materials and is primarily used for crack detection. The specimen is magnetised either locally or overall, and if the material is sound the magnetic flux is predominantly inside the material. If, however, there is a surface-breaking flaw, the magnetic field is distorted, causing local magnetic flux leakage around the flaw. This leakage flux is displayed by covering the surface with very fine iron particles applied either dry or suspended in a liquid. The particles accumulate at the regions of flux leakage, producing a build-up which can be seen visually even when the crack opening is very narrow. Thus, a crack is indicated as a line of iron powder particles on the surface.

The method is applicable to all metals which can be strongly magnetised – ferritic steels and irons, but not generally austenitic steels.

The method of magnetisation must produce a magnetic field with lines of force at a large angle to the expected direction of the cracks to be detected, so that it is usual to apply the magnetisation more than once in different directions, for example in two directions mutually at right-angles, but methods of swinging the field direction during magnetisation are available.

The magnetisation may be produced by any of the following methods:

a) applying a permanent or electro-magnet to the surface (magnetic flow)

b) passing a large current through the specimen, or locally by means of current prods (current flow)

c) putting the specimen inside a current-carrying coil, or forming a coil around the specimen

d) making the specimen the secondary loop of a transformer – (induced current) – suitable for ring-shaped specimens

e) placing a current-carrying coil or loop close to the specimen surface

f) threading a current-carrying bar through a hollow specimen.

The electric current used may be DC or AC of any waveform, but the current required to produce adequate magnetisation depends on the waveform of the supply, the magnetisation method used, and the material of the specimen. It is most important to ensure that the current used is correct for the specimen size and shape and also that the direction of the magnetic flux produced is suitable for the cracks expected.

By using a combination of two magnetic fields, a swinging or rotating magnetic flux can be produced, which will detect a crack in any orientation.

Usually the iron particles – dry powder or suspended in a liquid (magnetic ink) – are applied while the magnetising current is still flowing, but residual magnetisation is sometimes used, when the particles are applied after magnetisation. Some steels retain sufficient magnetisation for this method to be satisfactory, and in this case smaller, more portable, magnetising equipment can be used. Magnetic inks (particles suspended in a liquid) are used more widely than dry powders. They are applied by low-pressure spray, dipping or brushing; it is important to use plenty of ink and to allow time for the particles to flow over the surface and migrate to any cracks. On dark surfaces a very thin layer of white paint can be applied to give a higher contrast indication.

Fluorescent particles, which require UV-A illumination, are widely used and coloured particles are also available. The indications of cracks can be preserved by photography or by the use of peel-off transparent adhesive film. MPI methods can be applied to relatively rough and dirty surfaces, but the flaw sensitivity may be impaired. Magnetic methods for underwater applications have been developed. Only under very special conditions can sub-surface flaws be detected by MPI.

Sales and Supply of magnetic particle inspection (MPI), powders, consumables and other accessories. Read more about sales of Magnetic particle inspection equipments

Magnetic flux leakage methods

As with MPI, the ferromagnetic specimen is magnetised by one of the methods listed, and depending upon the level of induced flux density, magnetic flux leakage due to both near- and far-surface flaws is detected by the voltage induced in a detector coil or a Hall effect element, which is traversed over the surface of the specimen. Unlike MPI, the method is not limited to surface-breaking or near-surface flaws, but actually becomes increasingly sensitive to far-surface flaws with increasing levels of magnetisation. Also, the output from the detector can be amplified, filtered, digitised, etc and stored to produce automated inspection systems. The method is widely used on bar and tube stock with both rotating specimens and rotating probes. Multi-element and differential probes are also used, and inspection speeds can be very high. One technique, known as magnetography, utilises a special form of magnetic tape applied to the surface of a specimen during magnetisation, allowing flux leakage fields to be picked up and stored on the tape. The tape can then be removed from the specimen for processing and analysis of the signals.

The method is also finding increasing use in the petrochemical industries for providing high-speed inspections of storage tank floors, as well as carbon steel pipes. These systems utilise either permanent or electromagnets to provide localised near-magnetic saturation coupled with induction coil or Hall effect sensor arrays for detecting anomalous flux leakage caused by the presence of corrosion defects (both near and far surface). Many of these systems rely upon the use of an adjustable threshold or amplitude gate to provide the detection of corrosion in real-time, while some of the more advanced systems, through the use of both advanced electronics and signal processing are able to provide corrosion maps of inspected areas similar to the C-scan representation of ultrasonic data.

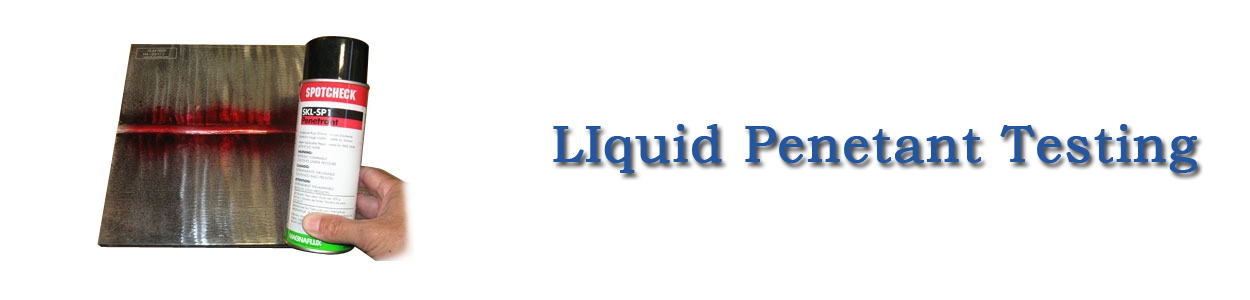

NDT INSTITUTE IN CHENNAI - Liquid Penetrant Testing or Dye Penetrant Inspection

Liquid or dye penetrant testing is a non –destructive method for finding discontinuities that are open to the surface of solid and essentially non-porous materials. Indications of flaws can be found regardless of the size, configuration, internal structure, or chemical composition of work piece being tested and regardless of flaw orientation. Liquid penetrant can seep into (and be drawn into) various types of minute surface openings (reportedly, as fine as 4micro inch in width) by capillary action. Because of this, the process is well suited for the detection of all types of surface cracks, laps, porosity, shrinkage areas, lamination and similar discontinuities in casting, forgings, welds and other product forms. Dye penetrant inspection is used extensively for the testing of wrought and cast products of ferrous and non-ferrous metals, powder metallurgy parts, and ceramics and glass objects.

In practice, the liquid penetrant inspection process is relatively simple. Equipment generally is simpler and less costly than that for most other NDT methods .When used on ferromagnetic steels, in some instances, the sensitivity of liquid penetrant test is better than that of magnetic particle testing.

NDT - Limitations

The major limitation of liquid penetrant testing is that, it can detect only imperfections that are open to the surface. Another factor that may inhibit the effectiveness of liquid penetrant testing is the surface roughness of the object being tested .Rough or porous surfaces are likely to produce false indication.

Liquid penetrant testing depends mainly on a liquid's effectively wetting the surface of a solid work piece of specimen, flowing over the migrating into cavities that are open to the surface. Closely related to wetting ability is the phenomenon of capillary rise or depression.

The liquid penetrant testing requires at least five steps:

Surface preparation.

Application of penetrant.

Removed of Excess penetrant.

Application of Developer.

Observation and Reporting.

Liquid dye Penetrant inspection facilities at 'NDT INSTITUTE & INSPECTION TECHNOLOGY LTD, Chennai, Tamil Nadu, India.

Specialized stationery type Liquid dye penetrant inspection equipments for NDT applications Modern testing equipments perfectly equipped with S2, S3 sensitivity penetrants and Water washable, post Emulsifiable penetrants for high sensitivity applications High intensity black light kits for fluorescent inspection and demagnetizing equipments Liquid penetrant testing professionals are qualified and certified to PT Level I, II as per ASNT recommended practice SNT-TC-1A and or IS:13805 certified by Indian Society for Nondestructive testing (ISNT) and are approved by leading third party inspection authorities Experienced in house ASNT NDT Level III consultants and experts for providing techniques establishment, procedure preparation, approval and consultancy services.

ASNT NDT Level III trainers for conducting in house or external NDT Level 1, 2 training and certification courses on Liquid dye penetrant testing and other NDT inspection methods. Read more about Liquid Penetrant Testing Personnel Certifications.

Strong team of NDT Level 2 certified professionals to provide Liquid Penetrant testing services across India Sales and Supply of Dye penetrant inspection (DPT), penetrants, cleaners, solvents, developers and other consumables and accessories. Read more about sales of Liquid Penetrant inspection chemicals and consumables

Liquid penetrant inspection

This is a simple low-cost method of detecting surface-breaking flaws such as cracks, laps, porosity, etc. To be detected, the flaw must reach the surface to be tested.

Penetrant testing is one step up from visual inspection and offers many advantages, such as speed, large-area coverage and cheapness.

It is usually a six-stage process:

a) surface cleaning (degreasing etc)

b) application of a penetrant liquid (dipping, spray, brush)

c) removal of excess penetrant (solvent, water)

d) application of developer

e) inspection of test surface (visual, television camera)

f) post-inspection cleaning (anti-corrosion solutions).

There are three major groups of penetrant process:

a) water-soluble

b) post-emulsifiable with water rinsing

c) solvent removable, the difference being in the method used to remove the excess penetrant.

In each of these three groups the penetrant solution can contain a dye to make the indication visible under white light, or a fluorescent material which fluoresces under suitable ultraviolet (UV-A) light.

The choice of technique for any specific application is based on:

a) the surface finish of the specimen

b) the compatibility of the materials with the specimen

c) the sensitivity required

d) the size, shape and accessibility of the area to be inspected

e) the ultimate use of the component.

Fluorescent penetrants are usually used when the maximum flaw sensitivity is required.

The principle of liquid penetrant testing is that the liquid penetrant is drawn into the surface-breaking crack by capillary action and excess surface penetrant is then removed; a developer (typically a dry powder) is then applied to the surface, to draw out the penetrant in the crack and produce a surface indication. Cracks as narrow as 150 nanometres can be detected. The indications produced are much broader than the actual flaw and are therefore more easily visible.

Liquid penetrant testing can be applied to any non-porous clean material, metallic or non-metallic, but is unsuitable for dirty or very rough surfaces. Surface cleaning is a vital part of the penetrant testing technique. The method can be manual, semi-automatic or fully automated. Penetrant inspection, continuous-operation production lines in which the specimens are cleaned, dipped, washed, dried, etc on a time cycle are common.

Recently, equipment to fully automate the visual inspection stage of the process, by robotic handling of the specimen on a programmed procedure with television camera viewing and pattern recognition to identify and recognise flaws, has been introduced. Television image enhancement processes can be included.

A special, very high sensitivity penetrant process, using radioactive tracers is sometimes used, but requires very stringent safety procedures.

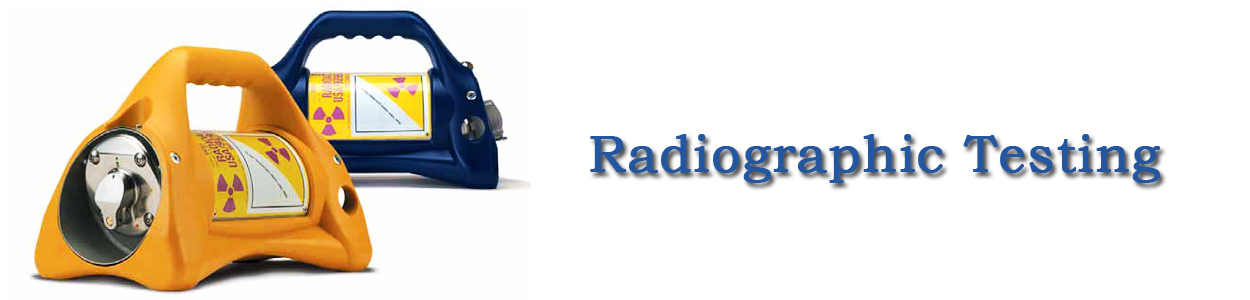

NDT INSTITUTE IN CHENNAI – NDT - Radiographic testing (RT)

Radiographic testing is anon-destructive testing of components and assemblies that is based on differential absorption of penetrating radiation- either electromagnetic radiation of very short wave-lengths or particulate radiation by the part or test piece being tested. Because of differences in density and variations in thickness of the part, or differences in absorption characteristics caused by variation in composition, different portions of a test piece absorb different amounts of penetrating radiation. Unabsorbed radiation passing through the part can be recorded on film or photosensitive paper, viewed on a florescent screen or monitored by various types of electronic radiation detectors.

The term radiography testing usually implies a radiographic process that produces a permanent image on film or paper. Although in a broad sense it refers to all forms of radiographic testing. Neutron radiography refers to radiographic testing using a stream of neutrons rather than electromagnetic radiation.

NDT INSTITUTE IN CHENNAI – USES – NDT

Industrial Radiography inspection is used to detect features of a component or assembly that exhibit a difference in thickness or physical density as compared to surrounding material. Large differences are more easily detected than small ones. In general, radiography can detect only those features that have an appreciable thickness in direction parallel to the radiation beam. This means that the ability of the process to detect planar discontinuities such as cracks depends on proper orientation of the test piece during testing. Discontinuities such as voids and inclusions, which have measurable thickness in all directions, can be detected as long as they are not too small in relation to section thickness. In general, features that exhibit a 2% or more difference in absorption compared to the surrounding material can be detected. Radiography is more effective when the flaws are not planar.

NDT - Applicability

Radiographic testing is used extensively on castings and weldments. Radiography is well suited to the testing of semiconductor devices for cracks, broken wires, unsoldered connections, foreign material and misplaced components. Sensitivity of radiography to various types of flaws depends on many factors, including type of material, type of flaw and product form. Both ferrous alloys can be radio graphed, as can non-metallic materials and composites.

NDT - Limitations

Compared to other NDT methods, radiography is expensive. Relatively large capital costs and apace allocations are required for a radiographic laboratory. Field testing of thick sections is a time consuming process. High activity sources require heavy shielding for protection of personnel. Tight cracks in thick sections usually cannot be detected at all, even when properly oriented. Minute discontinuities such as inclusions in wrought material, flakes, micro- porosity and micro-fissures cannot be detected unless they are sufficiently segregated to yield a detectable gross effect. Laminations are impossible to detect with radiography, because of their unfavorable orientation. Laminations do not yield differences in absorption that enable laminated areas to be distinguished from limitation free areas.

It is well known that large doses of X-rays or gamma rays can damage skin and blood cells, can produce blindness and sterility, and in massive doses can cause severe disability or death. Protection of personnel not only those engaged in radiographic work but also those in the vicinity or radiographic testing is of major importance. Safety requirements impose both economic and operational constraints on the use of radiography for testing.

Radiography testing facilities at 'NDT INSTITUTE & INSPECTION TECHNOLOGY LTD' Chennai , TAMil Nadu , India. Iridium 192 gamma ray and X-rayinspection equipments Modern testing equipments perfectly equipped for high sensitivity applications Dark room for film processing and Film Interpretation facilities Radiography inspection personnel are qualified and certified to BARC RT Level I, II certified, RT Level I, II certified as per ASNT recommended practice SNT-TC-1A and or IS:13805 certified by Indian Society for Nondestructive testing (ISNT) and are approved by leading third party inspection authorities Experienced in house ASNT NDT Level III consultants and experts for providing techniques establishment, procedure preparation, approval and consultancy services.

ASNT NDT Level III trainers for conducting in house or external NDT Level 1, 2 training and certification courses on Radiography testing and other NDT inspection methods. Read more about Radiography Testing Personnel Certifications.

Strong team of NDT Level 2 certified professionals to provide Radiography or X-ray testing services across India Sales and Supply of RT consumables and accessories. Read more about sales of NDT Equipment and accessories

Radiography

including high-definition radiography, radiometry and X-ray tomography)

Radiography uses X-rays or gamma-rays to produce an image of an object on film. The image is usually natural-size. X-rays and gamma-rays are very short wavelength electromagnetic radiation which can pass through solid material, being partly absorbed during transmission. Thus, if an X-ray source is placed on one side of a specimen and a photographic film on the other side, an image is obtained on the film of the thickness variations in the specimen, whether these are surface or internal.

This is a well-established technique which gives a permanent record and is widely used to detect internal flaws in weldments and castings and to check for mis-constructions in assemblies.

The source of radiation is either an X-ray tube or a pellet of radioactive material emitting gamma-radiation. X-ray equipment is usually described by the electrical voltage across the X-ray tube: thus, 300 kV X-rays. The higher the voltage, the greater the penetrating power of the radiation; industrial X-ray equipment ranges from about 20 kV to 20 MV and the most powerful equipments can be used to radiograph up to 500 mm (20") steel.

Nearly all gamma-radiography is done with either cobalt-60 or iridium-192 sources; there are a few other radioactive isotopes suitable for gamma-radiography, for special applications.

To obtain images with good definition it is desirable to have small-diameter radiation sources and the effective source size of typical X-ray and gamma-ray sources is in the range 1 to 4 mm diameter. After the radiographic film has been exposed, it has to be photographically processed (develop, wash, fix, dry) and is then placed on an illuminated screen for visual interpretation of the image. X-rays and gamma-rays are dangerous and radiographic equipment must be used either inside a protective enclosure, or with appropriate barriers and warning signals, to ensure that there is no radiation hazard to personnel. Qualified staff must be employed.

Radiography on film is a relatively expensive NDT method, due to the cost of the film. The larger X-ray equipments (for thick specimens) are also costly and require costly protective enclosures. Gamma-ray sources are much less expensive and are widely used on site work because of their greater portability. Generally, exposure times in gamma radiography are much longer than with X-rays.

High-definition radiography

Special X-ray tubes have been developed in which the source of X-rays is much smaller than in a conventional tube. In microfocus X-ray tubes the source size may be as small as 10 micrometres and this permits projected, enlarged images to be obtained which are adequately sharp. Such X-ray tubes have a very low output of X-rays and this is a technique which has not yet been fully developed.

Radiometry

By using a collimated radiation detector to scan the specimen, in register with a suitable radiation source, a measure of the transmitted radiation can be obtained. Whilst the advantage of having a radiographic image is lost, there are nevertheless several advantages to be gained by using radiometric techniques:

a) The radiation source may be of much lower activity than a radiographic source for the same item, typically up to 6 orders of magnitude lower. Thus, it is potentially much less hazardous.

b) Gamma-ray sources are most frequently used being highly portable and of very stable radiation output (long-term decay factor apart).

c) In the testing of shielding for buildings and containers holding radioactive materials, radiometry yields directly quantitative data on shielding defects, which radiography does not do.

X-ray tomography

By measuring the X-ray absorption through a specimen in a large number of different directions, digitising and collecting the data, a computer programme can be used to calculate and display a new form of X-ray image. The image produced is as if a thin slice has been cut through the specimen along the plane of the X-ray beam and this slice then radiographed.

The usual method used in industrial X-ray tomography is to move the specimen transversely and rotationally in a series of steps across a fixed X-ray beam measuring the absorption at each position. The computer requirements are quite large, and for industrial applications this is still a new technique.

Dynamic radiography/radioscopy

Radiography and radioscopy can be applied to the study of objects in motion inside opaque casings, or other situations where the object is obscured from direct visual observation. These techniques can give valuable information to Design and Development Engineers on the performance of gas turbines, reciprocating engines, 2-phase flow and a wide range of transient phenomena. The radiation sources used may be constant potential or pulsed X-ray generators, gamma-ray and neutron sources. The recording medium may be X-ray film, cine film or video systems, the latter two in conjunction with X-ray image intensifiers.

The type of source used, and the image recording system, radiographic film, image intensifiers, cine film, video recording, will depend on the type of event that is required to be studied, and the thickness and density of the subject.

X-ray sources may be constant potential, (half-wave generators are of limited use); repetitively pulsed eg linear accelerators; or single pulse eg flash pulsers. Gamma-ray sources may be used where long-term movement caused by changes in stress or temperature are required to be measured.

Fast moving images may be recorded at very high frame rates using suitable cine cameras or high-speed video systems allowing slow-motion replay, or ‘frozen’ on X-ray film using flash pulser X-ray sources with pulse durations of 20 to 50 nanoseconds, when suitable synchronising systems are used.

Repetitively pulsed sources may be synchronised to cyclic rotational events, yielding techniques of strobo-radiography/radioscopy. Variable precession of the synch pulses enables examination of whirl and vibration amplitudes of rotating shafts or assemblies from differing angles, and slight variations in the frequency of the X-ray pulses can yield slow-motion presentations of high-speed events.

See also: Real-time radiography, radioscopy.

NDT INSTITUTE IN CHENNAI - Visual testing (VT)

Visual inspection is one of the most common and most powerful means of non-destructive testing. Visual testing requires adequate illumination of the test surface and proper eye-sight of the tester. To be most effective visual inspection does however, merit special attention because it requires training (knowledge of product and process, anticipated service conditions, acceptance criteria, record keeping, for example) and it has its own range of equipment and instrumentation. It is also a fact that all defects found by other NDT methods ultimately must be substantiated by visual inspection. VT can be classified as Direct visual testing, Remote visual testing and Translucent visual testing. The most common NDT methods MT and PT are indeed simply scientific ways of enhancing the indication to make it more visible. Often the equipment needed is simple for internal inspection, light lens systems such as bore scopes allow remote surfaces to be examined. More sophisticated devices of this nature using fibre optics permit the introduction of the device into very small access holes and channels. Most of these systems provide for the attachment of a camera to permit permanent recording.

NDT INSTITUTE IN CHENNAI - NDT material testing facility contains light meters, welding gauges, magnifiers, lenses, other measuring instruments and equipments for precise control of surface quality. Our NDT inspectors, engineers and technicians are qualified to NDT Level I, II as per written practice prepared according to ASNT recommended practice SNT-TC-1A and in-house ASNT NDT Level IIIs for providing inspection and consulting services.

Visual inspection

Visual inspection, with or without optical aids, is the original method of NDT. Many defects are surface-breaking and can be detected by careful direct visual inspection.

Optical aids include low-power magnifiers, microscopes, telescopes and also specialised devices such as boroscopes, endoscopes and other fibre-optic devices for the inspection of restricted access areas. These devices can also be used with television camera systems. Much of the success of visual inspection depends on the surface condition and the lighting arrangements. Surface preparation such as cleaning and etching is often used and also surface replicas can be taken for both macro- and microscopic examination. In-situ metallography is also possible.

High-speed visual inspection with automated output is used for the inspection of the surface of sheet material and television techniques may use enhanced image and pattern recognition methods. Remote photography of inaccessible surfaces, such as inside a radioactive environment, is also possible. High-speed cine is also used for studying fast events. Arrays of optical diodes can be used instead of television cameras.

NDT INSTITUTE IN CHENNAI - Training & Certification courses

The training institute is conducting the following courses and plans are on the anvil for adding more courses as well.

Training Schedules:

NDT Institute & INSPECTION TECHNOLOGY LTD conducts training for its various programmes, every month throughout the calendar year. Hence participants can join at their convenient time. For current training schedules at our institutes in India, visit our NDT Training Schedules page

For additional information Contact Us. For recommended Qualification and experience requirements visit the Eligibility Criteria page

Why training at NDT INSTITUTE IN CHENNAI – NDT INSTITUTE & INSPECTION TECHNOLOGY LTD.,

NDT Institute & of INSPECTION Technology Ltd., is organizing all the five NDT courses seamlessly without break for the convenience of participants attending the courses from all over India and abroad.

NDT INSTITUTE IN CHENNAI is the best & CENTRAL GOVT. APPROVED LAB FOR NDT NABL ACCREDITED LAB IN CHENNAI, India providing excellent interactive training sessions for the candidates in India and abroad alike. Hope you will also be benefited by attending our professional training programmes and experience quality sessions. The institute's training programmes are rated as some of the best available in India and abroad as well You will experience NDT training sessions and practicals on latest state of art equipments with expert trainers having more than 09 Years experience in NDT, Materials science, Metallurgy, Welding technology to explain deeper aspects of NDT at affordable price.

NDT INSTITUTE IN CHENNAI provides placement assistance depending on your qualification, experience levels and proficiency after successful completion of training courses. Visit our Careers page The NDT institute in Chennai has latest and modern training centre equipped with audio, visual power point presentations,fully established NDT laboratory for complete practicals accommodation near by our the Institute apartments & Hostel for pleasant and peaceful stay for participants from outstation at affordable cost

NDT Training & Certification

NDT INSTITUTE IN CHENNAI - Training is in fact integration of human resources and technology. The technology transfer must consider how information, directions and instructions shall be translated in the minds of trainees. This will involve presenting basic principles, theory and contents of the training programmes in such a way that these may not only be easily understandable but trainees shall be able to adopt them. One of the fundamentals of training is that people learn better when they can connect what is taught to their own experience; therefore practical on-job training has gained importance in the training programmes. NDT Training system for NDT & welding at NDT INSTITUTE NDT has been designed in such a way that theory is blended with on-job practical training.

NDT Training of NDT personnel for industry requires

Selection of the inspection technique for revealing critical defects

Performance of test procedures at the required level of expertise

Management of equipment, personnel and materials to ensure consistent performance

Training and certification of personnel have been standardized. Both national and international standards give details of educational qualifications, training programmes and method of certification. According to these standards a person considered for certification in NDT shall have sufficient education and experience to ensure understanding of principles and procedures in each method.

In general, these personnel have been categorized into three levels

Level I – Certified to carry out the specific NDT test method

Level II- Certified to test and analyses as per relevant standards, codes, specifications

Level III- Certified to enhance and manage the test system

Strictly adhering to the quality systems, NDT Institute & INSPECTION TECHNOLOGY LTD.,is a leading professional institute in Chennai , India for its training and certification programs in NDT, QA/QC courses. The NDT Institute is conducting regular and specialized NDT Level I, II training courses as per ASNT Recommended practice SNT-TC-1A and NDt programs. Training courses can also be designed and organized as per the specific requirements of the client.

The NDT institute in Chennai is committed to direct towards right performance of customer operations by human resource development. For assistance in maximizing quality production, reduction of crisis and lowering the prime cost of production with trained and certified in-house personnel, we encourage you to undergo the NDT training and certification courses. Our trainers have sound experience not only in NDT but material sciences and materials testing technologies as well. In addition, the training institute has highly qualified and well experienced faculty (more than 5 years) for training. Our faculty includes ASNT Level IIIs, metallurgists, T-K-Y joints testing experts. Introduction to welding & welding defects, welding inspector courses are taken Radiographic test film interpretation (RTFI) is taken care by certified NDT Level III with more than 5 years experience as RTFI.

Ultrasonic Testing (UT) Level-I

NDT INSTITUTE IN CHENNAI - Training course objective:

NDT INSTITUTE IN CHENNAI - provide a basic knowledge of UT to enable a participant to carryout tests according to an established procedure under the supervision of a level II or level III personnel. The course is especially designed to provide a sound theoretical knowledge and practical skill for UT required for a Level I (1) technician

UT Level I Responsibilities

To carryout operation as per written procedure/instruction from Level II personnel. He shall be able to set up the equipment, calibrate and carryout the tests, classify and report the results. He shall not be responsible for the choice of the test technique nor for assessment of the test results.

NDT - UT Level I Course outline

Properties of Sound Waves

Generation of Ultrasonic waves

Interaction of ultrasound with matter and boundaries

Types of Probes

Test Methods

Test Equipment

Instrumentation

Test Variables

Inspection procedures

Types of Discontinuities

NDT - UT Level I Practical training

Complete calibration of ultrasonic flaw detection equipment for various types of transducers, Discontinuity Detection, Locating the flaw and Size Estimation Techniques.

NDT - Ultrasonic Testing (UT) Level-II

NDT INSTITUTE IN CHENNAI - Training course objectives:

The course is intended to provide through grounding in the principle of Ultrasonic Testing-UT and fundamentals of material and process such that the trainee would be able to

Identify suitability of UT for the material and inspection technique

Develop techniques and procedures that can be followed by a Level I operator

Analyse the test result and document the same

Be familiar with codes, standards and specifications for UT to evaluate results of the tests

NDT - UT Level II Responsibilities

A certified UT Level II (2) personnel is qualified to

Select proper test technique, equipment and probes

Set up and calibrate the equipment

Perform testing and interpret the results as per applicable standards

Have knowledge of the scope and limitations of UT

Be familiar with production processes of the test material and knowledge of type and location of expected defects

To develop UT technique for testing a particular job

Prepare test report for i. Accept ii. Reject iii. Rework

Prepare written instruction for Level I

Guide and check test results of Level I operators

Responsible for care and maintenance of the NDT/UT equipment

NDT - UT Level II Course outline

Review of Level-I course

In-depth study of test Variables

Immersion Techniques

Principles of DGS/DAC Methods

Echo dynamics for Reflector Evaluation

Codes, standards and Procedures

Acceptance Standards

Evaluation of Test Equipment,

Manufacturing Process and Discontinuities

NDT - UT Level II Practical Training

Same as for Level 1 course + Interpretation, Evaluation of Indications using DGS/DAC. Evaluation Methods and Echo Dynamics, Beam Profile and Plotting

NDT INSTITUTE IN CHENNAI - Magnetic Particle Testing (MPT) Level-I

NDT - Training course objective:

To provide a basic Knowledge of MT to enable a participant to carry out tests according to a established procedure under supervision of a level II or III personnel. The course is especially designed to provide a sound theoretical knowledge and practical skill for MT required for a level I technician.

NDT - MT Level I Responsibilities

To carry out operations as per written procedure/instruction from level II personnel. He shall be able to set up equipment, calibrate and carry out tests, classify and report the results. He shall not be responsible for the choice of test technique nor for assessment of the test results.

NDT - MT Level I Course outline

Basic of Magnetism

Magnetisation Techniques

Inspection Mediums

Inspection Techniques

Indication Classification

Test Equipments and Accessories

Demagnetisation

Types of Discontinuities

NDT - MT Level I Practical Training

Yokes, Prods, Headshot, Central Conductor, Coil Techniques, Using dry, wet ordinary and wet fluorescent powders, Demagnetisation.

NDT - Magnetic Particle Testing (MPT) Level-II

NDT Training course objectives

The course is intended to provide detailed instruction in theory and practice such that the personnel shall be able to

Identify suitability of MT for material and inspection procedure.

Develop inspection techniques and procedure that shall be followed by level I operator.

Analyse the test results.

NDT - MT Level II Responsibilities

NDT INSTITUTE IN CHENNAI To select proper test technique and equipment as per established procedure

To calibrate, set and carry out test or supervise testing by level I operator

Prepare test report for acceptance/rejection as per standard

Have knowledge of merits and limitations of MT and other common NDT methods

Prepare written procedure for level I operator

Responsible for care and maintenance of testing machines and accessories

NDT - MT Level II Course outline

Review of Level-I course

Selection of Techniques

Codes, standards and Procedures

Acceptance Standards

Manufacturing Process and Discontinuities

Interpretation of Indications

Preservation of Indications

Evaluation of Test Equipment

NDT - MT Level II Practical Training

Same as Level-I + Interpretation, evaluation and recording of test results.

NDT - Liquid (Dye) Penetrant Testing (DPT/PT) Level-I

NDT - Training Course objective:

NDT INSTITUTE IN CHENNAI - To provide basic knowledge of PT sufficient to enable a person to carry out tests in accordance with established procedures under the supervision of level II personnel.

NDT - PT Level I Responsibilities

To carry out operations according to written instructions, set up the equipment, carry out the test, record, classify, and report the results. The level I personnel shell be not responsible for choice of test method nor for assessment of test results.

NDT - PT Level I Course outline

Basics of Penetrant Testing

Penetrant Groups

Pre-cleaning Methods

Penetrant testing methods and techniques

Types of Developers

Inspection Procedures

Sensitivity & Resolution checking of test systems

Types of Discontinuities

NDT - PT Level I Practical training

Visible (Red) and Fluorescent Penetrants of various types of different surfaces use of dry, wet, solvent suspended developers.

NDT - Liquid (Dye) Penetrant Testing (LPT) Level-II

NDT Training Course objectives

NDT INSTITUTE IN CHENNAI - To provide the personnel with full theoretical and practical knowledge of PT process and related standards.

NDT PT Level II Responsibilities

To perform and direct PT according to the established or recognized procedures, select test methods to be used, set up and calibrate equipment, interpret and evaluate result according to applicable standards. Develop PT techniques adopted to problems arising during testing, prepare written instructions, organize and report test results.

PT Level II Course outline

Review of Level-I course

Selection of Techniques

Manufacturing Process and Discontinuities

Interpretation of Indications

Preservation of Indications

Evaluation of Test Equipment

Penetrant materials quality control

Codes, standards and Procedures

NDT PT Level II Practical Training

Same as for Level I + Interpretation

NDT INSTITUTE IN CHENNAI - Radiographic Testing (RT) Level-I

NDT Training Course objective

NDT INSTITUTE IN CHENNAI To provide a basic knowledge of RT to enable a participant to carryout tests according to an established procedure under the supervision of a level II or level III personnel. The course is especially designed to provide a sound theoretical knowledge and practical skill for RT required for a Level I technician

NDT RT Level I Responsibilities

NDT INSTITUTE IN CHENNAI - To carryout operation as per written procedure/instruction from Level II personnel. He shall be able to set up the carryout the tests as per established and approved RT procedures, classify, report the results and to follow safety norms. He shall not be responsible for the choice of the test technique nor for assessment of the test results.

NDT RT Level I Course outline

Nuclear Physics-Interaction of Radiation with Matter

Shielding, Radiation Detectors, Biological Effects

Radiation Protection, Basic Rules & Techniques

Sources of Radiation and their characteristics

Film Radiography

Film Processing

Inspection Techniques and Procedures

Sensitivity & Definition, I.Q.Is, Other Accessories

Types of Discontinuities

NDT RT Level I Practical training

Radiography of Castings and welds using X-ray and Gamma ray.

NDT Radiographic Testing (RT) Level-II

NDT Training course objectives

The course is intended to provide through grounding in the principle of Radiographic Testing-RT and fundamentals of material and process such that the trainee would be able to

Identify suitability of RT for the material and inspection technique

Develop techniques and procedures that can be followed by a Level I operator

Analyse the test result and document the same

Be familiar with codes, standards and specifications for RT to evaluate results of the tests

Be conversant with all statutory and safety norms of the authorities under jurisdiction

NDT RT Level II Responsibilities

A certified RT Level 2 personnel is qualified to

Select proper test technique, equipment, films, IQI and other test parameters

Set up the equipment

Perform testing, Manually process film for high contrast and resolution and interpret the results as per applicable standards

Have knowledge of the scope and limitations of RT

Be familiar with production processes of the test material and knowledge of type and location of expected defects

Describe the operational steps in the radiography test method and understand the importance of each step

To develop RT technique for testing a particular job

Prepare test report for i. Accept ii. Reject iii. Rework

Prepare written instruction for Level I

Guide and check test results of Level I operators

Responsible for care and maintenance of the NDT/RT equipment

NDT RT Level II Course outline

Review of Level-I course

Non-conventional Radiography

Techniques in radiography

Codes, standards and Procedures

Acceptance Standards

Manufacturing processes and discontinuities

Interpretation of Radiographs

NDT RT Level II Practical training

Same as level-I + Interpretation, evaluation of Radiographs, recording of test results and preparation of test reports.

NDT - Radiographic Testing (RT) Level-I

NDT Training Course objective

To provide a basic knowledge of RT to enable a participant to carryout tests according to an established procedure under the supervision of a level II or level III personnel. The course is especially designed to provide a sound theoretical knowledge and practical skill for RT required for a Level I technician

NDT RT Level I Responsibilities

NDT INSTITUTE IN CHENNAI - To carryout operation as per written procedure/instruction from Level II personnel. He shall be able to set up the carryout the tests as per established and approved RT procedures, classify, report the results and to follow safety norms. He shall not be responsible for the choice of the test technique nor for assessment of the test results.

NDT RT Level I Course outline

Nuclear Physics-Interaction of Radiation with Matter

Shielding, Radiation Detectors, Biological Effects

Radiation Protection, Basic Rules & Techniques

Sources of Radiation and their characteristics

Film Radiography

Film Processing

Inspection Techniques and Procedures

Sensitivity & Definition, I.Q.Is, Other Accessories

Types of Discontinuities

NDT RT Level I Practical training

Radiography of Castings and welds using X-ray and Gamma ray.

NDT Radiographic Testing (RT) Level-II

NDT Training course objectives

The course is intended to provide through grounding in the principle of Radiographic Testing-RT and fundamentals of material and process such that the trainee would be able to

Identify suitability of RT for the material and inspection technique

Develop techniques and procedures that can be followed by a Level I operator

Analyse the test result and document the same

Be familiar with codes, standards and specifications for RT to evaluate results of the tests

Be conversant with all statutory and safety norms of the authorities under jurisdiction

NDT RT Level II Responsibilities

A certified RT Level 2 personnel is qualified to

Select proper test technique, equipment, films, IQI and other test parameters

Set up the equipment

Perform testing, Manually process film for high contrast and resolution and interpret the results as per applicable standards

Have knowledge of the scope and limitations of RT

Be familiar with production processes of the test material and knowledge of type and location of expected defects

Describe the operational steps in the radiography test method and understand the importance of each step

To develop RT technique for testing a particular job

Prepare test report for i. Accept ii. Reject iii. Rework

Prepare written instruction for Level I

Guide and check test results of Level I operators

Responsible for care and maintenance of the NDT/RT equipment

NDT RT Level II Course outline

Review of Level-I course

Non-conventional Radiography

Techniques in radiography

Codes, standards and Procedures

Acceptance Standards

Manufacturing processes and discontinuities

Interpretation of Radiographs

NDT RT Level II Practical training

Same as level-I + Interpretation, evaluation of Radiographs, recording of test results and preparation of test reports.

NDT Eddy Current Testing (ET) - Level I

NDT Training Course objective:

This course prepares a candidate to conduct Eddy Current Inspection and

Perform specific calibrations

Specific NDT

Specific evaluations for Accept or Reject Determinations according to written Instructions

Recording results

NDT Level I Course outline

MANUFACTURING DISCONTINUITIES

Types of Discontinuities: Inherent, Processing and Service

Casting Discontinuities: Hot Tear, Cold Shut, Porosity, Shrinkage

Primary Processing Discontinuities including discontinuities in Rolling, Forging, Drawing, Extruding

Secondary Processing Discontinuities including discontinuities in Grinding, Heat Treating, Machining, Welding, Plating

Service Discontinuities:- Erosion, Wear, Fatigue, Corrosion, Creep

GENERAL KNOWLEDGE OF ET

Electrical Parameters

Resistance

Inductance

Impedance

Electromagnetism

Faradays Law

Lenzs Law

Eddy Current Theory

Generation of Eddy Currents

Impedance changes by Eddy Currents

Effect of change of impedance on instrumentation

Impedance Curves

Conductivity Curve

Lift Off Curve

Permeability

Types of Eddy Current Sensing Elements

Probes

Absolute

Differential

Lift-off

Theory of operation

Materials

Inspection of Non-Ferromagnetic Materials

Inspection of Ferromagnetic Materials

Special Probes

Lift Off Insensitive

Fastener Probes- Ring Probe

Calibration Standards

Conductivity Standards

EDM notch Surface Standards

Applications

Surface Inspection

Inspection of Airframes

Airframe Fastener Inspection

Turbine Blade Inspection

Inspection of Petrochemical Piping

ET Level I Practical training

Setting up the ET instruments, selection of frequency, calibration of equipments, testing various test samples, recoding results, preparing test reports

NDT Eddy Current Testing - Level II

NDT Training course objectives

Describe the basic principles of the eddy current test method

List several applications of the eddy current test method

List the types of discontinuities detected with the eddy current test method

Describe the cause and effect of various types of discontinuities

Describe the operational steps in the eddy current test and understand the importance of each step following a written procedure

Interpret and evaluate the test results with respect to the applicable standards

Complete the required test reports, and prepare a clear and concise written instruction (Procedure)

Locate defects in various materials, components and structures with a high probability of detection

NDT Level II Course Outline

Electromagnetic Testing

Fundamentals

Electromagnetic field generation

Properties of eddy current

Effects of varying frequency

Phase discrimination

Sensors Electromagnetic testing

Basic types of equipment; types of read out

Reference standards

Applications and test result interpretation

Flaw detection

Conductivity and permeability sorting

Thickness gauging

Process control

NDT ET Level II Practical Training

Setting up the Instrument, Selection of Frequencies for Tube Inspection, Selection of Probe Size, Calibrations, Depth Curve, Data Acquisition, Test on Various Samples, Prepare test report

NDT Visual Training Level I & II

NDT Training Course objective

Identifying various weld discontinuities

Understanding the relevant welding technology related to visual inspection

Understanding the need for documentation in welding

Familiarity with codes and standards related to inspection requirements

Carrying out inspection of parent materials and consumables

Perform visual inspection of welds, report on them and assess their compliance with specified acceptance criteria

Gaining sufficient knowledge to successfully complete the CSWIP 3.0 Visual Welding Inspector examinations.

NDT VT Course outline

Fundamentals of light and lighting

Physiology of vision

Fundamentals of Imaging

Visual Weld testing practices

Effect of fatigue

Fibre optic Bore scopes

Documentation of visual testing

Analysis of visual testing

NDT - VT Practical training

Light Intensity Measurements, Evaluating discontinuities in Cast, Rolled, Forged, Welded and inspection of engineering components

NDT - UT of TKY Joints

A certification course exclusively designed for acquiring proficiency to conduct Ultrasonic testing (UT) of critical T-K-Y weld joints during fabrication of structures and piping. The course is meant for in depth learning of special techniques suitable for directly applying to actual T-K-Y weld joints on field. NDT Level III Trainers with vast experience in inspection of specialized weld inspection applications will teach the subject. The program consists of PowerPoint presentations, in depth study about interpretation of applicable codes related to these types of joints, practical sessions and technical discussions to quickly bring the students for easy understanding the subject.

NDT - Course Outline

API-RP 2X (Tubular Connections)

Selection of probes

Construction of DAC

Evaluation of defects

Acceptance criteria

AWS D 1.1 (Non tubular connection Steel Structures)

Statically loaded

Cyclically loaded Structures.

Construction of weld cross section involving curvature using profile-gauge and other methods

Estimating change of angle, beam-path, surface distance for curved surfaces

Construction of a flaw locating rule for T K Y Weld Inspection

Applying acceptance criteria

Ultrasonic inspection report preparation

NDT PRACTICAL TRAINING

Sample Test Specimens containing T, K, Y welded joints

NDT INSTITUTE & INSPECTION TECHNOLOGY LTD., is organizing and conducting the above course at NDT & Welding courses training centers in Chennai,Tamil Nadu, in India. Contact us for more information about eligibility criteria and current schedules

NDT - Ultrasonic Thickness Testing - Level II

NDT Training Course objective

To provide a basic knowledge of Ultrasonic to enable a participant to carryout thickness gauging tests according to an established procedure under the supervision of a level II or level III personnel. The course is especially designed to provide a sound theoretical knowledge and practical skill for carrying our Ultrasonic thickness testing required.

NDT Level II Responsibilities

NDT INSTITUTE IN CHENNAI - To carryout operation as per written procedure/instruction from Level II personnel. He shall be able to set up the equipment, calibrate and carryout the thickness tests, classify and report the results. He shall be responsible for the choice of the test technique and assessment of the test results.

NDT Course outline

Introduction

Ultrasonic Fundamentals

Ultrasonic Transducers - Construction and Operation

Longitudinal Waves

Interfaces

Effects of Reflector/Test Geometry

Pulse-Echo Test Set up

Couplants and Coupling Techniques

Ultrasonic Instrumentation

Thickness Measurement

Ultrasonic thickness test Level II Practical training

Ultrasonic thickness testing of pipes, tubes, hollow machined components, castings, plates and corroded parts

Radiographic Test Film Interpretation (RTFI) Course - Level II

Training course objective:

Understand the basic principles of the radiographic inspection procedure

Understand the radiographic film processing procedures

Recognize limitations in exposure quality

Understand potential causes of processing artifacts

Assess radiographic quality

Understand viewing condition requirements

Interpret radiographic codes and specifications

Write reports based on code requirements

Understand origins of defects

Locate and recognize radiographic images of defects with a high probability of detection

NDT Level II Course outline

Review Of The Radiographic Variables Related To Film Interpretation

Film

Radiographic Viewing

Radiographic Image Quality

Exposure Techniques

Discontinuities

Radiographic artifacts

Codes, Procedures, and Written Practices

Radiographic Report Forms

NDT - RTFI Level II Practical training

Calibrating and using densitometers, evaluating radiographs related to casting and welds

NDT - Basic NDT Course

NDT - Training course objective:

Understanding the basic principles of various NDT methods, fundamentals, discontinuities in different product forms, importance of NDT, applications, limitations of NDT methods and techniques and codes, standards and specifications related to non-destructive testing technology. Briefing NDT certification programs, levels, responsibilities of Level 1, 2 & 3.

NDT - Basic NDT Course outline

NDT General Knowledge

Manufacturing processes

Types Discontinuities associated with manufacturing processes

Basics of Visual Testing - Principles, Techniques, Applications, Limitations, Codes, standards and Specifications related to Visual Testing

Basics of Liquid Penetrant Testing: Principles, Techniques, Applications, Limitations, Codes, standards and Specifications related to Liquid Penetrant testing

Basics of Magnetic Particle Testing: Principles, Techniques, Applications, Limitations, Codes, standards and Specifications related to Magnetic Particle testing

Basics of Ultrasonic Testing: Principles, Techniques, Applications, Limitations, Codes, standards and Specifications related to Ultrasonic Testing

Basics of Radiographic Testing: Principles, Techniques, Applications, Limitations, Codes, standards and Specifications related to Radiography

NDT Facilities at NDT INSTITUTE IN CHENNAI - NDT, Chennai Tamil Nadu India,

Nondestructive testing (NDT) is vital for ensuring safety, quality and integrity of critical aerospace components, assemblies and structures during manufacturing and overhaul, maintenance inspections of aircrafts. Nondestructive testing using liquid/dye penetrant testing, magnetic particle testing, Ultrasonic inspection, Radiographic testing, X-ray inspection, Visual and Baroscopic inspection of aerospace components and structures is carried out during various stages of manufacturing and maintenance (overhaul) inspections based on criticality of the components and specific aircraft structural quality requirements.

NDT TRAINING INSTITUTE IN CHENNAI MTL - is an ISO 9001:2008 certified NABL CENTRAL GOVT . Approved company in chennai , India. NDT testing facility is first of its kind in chennai, India equipped with modern custom designed equipments and facilities that meets international aerospace standards and specifications.

Over a decade, the facility is serving for inspecting large number of NDT components for various aircraft applications and OEMs, applying established and approved procedures. The company adheres to strict quality control in all NDT inspection practices as per ASTM, NAS, other International BS Standards and client specific NDT procedures to achieve optimum test results using ultramodern and well equipped state of art NDT facility at Chennai, in India.

NDT Facilities at NDT INSTITUTE IN CHENNAI, India

NDT iquid Penetrant testing/Dye penetrant inspection facility using Fluorescent, solvent removable, Water washable, Post Emulsifiable penetrant combinations with both S2, & S3 sensitivities that meets International standards and customer specifications. Calibrated and fully automatic Magnetic particle testing machines with headshot, coil, central conductor techniques. AC, HWDC and DC up to 6000A capacity modern MPI equipments and portable MPI machines for inspecting aerospace components as per ASTM E 1444 and other national and international aerospace standards.

Ultrasonic testing laboratory for aerospace components, structures inspection equipped with digital ultrasonic flaw detectors, transducers, calibration blocks, reference standards and accessories.

Radiography testing of casting and welds using Gamma ray and X-rays sources.

ASNT SNT TC 1A, NAS 410 Level 1, 2 certified professionals for performing all NDT inspections.

In house ASNT NDT Level III experts in Ultrasonic testing, magnetic particle testing, liquid penetrant testing, eddy current testing, radiography testing and visual inspection for consulting and coordinating all Aerospace NDT activities.

Training and certification of personnel to Level 1, 2 as per NAS 410 aerospace standard and ASNT SNT-TC-1A in UT, MT, ET, VT, RT & PT. Expert NDT Level 3 Consultation on establishment of NDT procedures and development of procedures for various aerospace components and applications.

NDT Training Calender

NDT Institute and Inspection Technology Ltd an internationally recognized institute for Nondestructive testing (NDT) Promoted by 'NDT INSTITUTE ' one of the leading NDT companies in India, the institute is conducting world class Level I, II Certification courses on

Ultrasonic testing(UT Level I, II),

Radiography Inspection (RT Level I, II),

Magnetic particle testing ((MT Level I, II),

Liquid/dye penetrant testing (PT Level I, II),

Visual testing (VT Level I, II),

Eddy current testing (ET Level I, II),

Radiographic film interpretation (RTFI Level I, II),

TKY Joints Ultrasonic Inspection,

Basics of Nondestructive testing,

Metallurgy for Non-metallurgists

and other custom tailor made training courses. Download complete Inspection and training services brochures here.

AWS-CWI, Other Welding Inspector Certification Courses welding inspector examination preparation courses are organized as well, frequently in tune with the current demand for welding inspection personnel. Contact us for the schedules on welding inspector courses in India.

Since more than a decade, the courses at 'NDT INSTITUTE' have become a benchmark in Nondestructive testing training in India and other countries. Immense response for these courses across the nations, wide recognition by employers for NDT INSTITUTE NDT certifications and international delegate participation encouraged us to announce the courses throughout the year to produce most competent NDT certified professionals. Read feedback and experience of participants with 'NDT INSTITUTE AND INSPECTION TECHNOOGY LTD'.

Benefits with training at NDT INSTITUTE IN CHENNAI

Organizing all the five NDT certification courses (UT, MT, PT, RT, VT) consecutively without break for the convenience of Indian and international participants

Internationally recognized certification at affordable fee with regular training batches throughout the calendar year. Excellent study resource materials prepared by experienced NDT experts and much useful for practicing engineers for immediately applying to on field NDT applications

NDT INSTITUTE IN CHENNAI ' is one of the best institutes in India providing powerful interactive training sessions with both Indian and international participation and are rated as the excellent training courses Practical sessions on latest state of art equipments with eminent trainers having more than two decades of experience in NDT, Metallurgy and welding technologies

'NDT INSTITUTE IN CHENNAI' provides free on the job training and placement assistance depending on your qualification, experience levels and proficiency after successful completion of the certification courses.

The institute has latest and modern training centre equipped with Audio, visual power point presentations, Fully established NDT, Material testing laboratory, NDT facilities for complete practical sessions

. Accommodation Near by the Institute area for pleasant and peaceful stay at affordable cost.

Personalized assistance and career guidance for participants.

Certification holders data base is maintained with web enabled system. Certified candidates can verify the certification validity status world wide at www.ndttraininginstitute.in from any where any time

The institute is located at the core of near by - Ambattur Industrial Area' is well connected by road, rail and air. The Institute is located at just 30 minutes drive from Chennai International Airport

Who We Are – NDT INSTITUTE IN CHENNAI ?

MTL NDT is an ISO 9001:2008 Certified & NABL Accreted Lab for NDT company in India for Nondestructive testing, Material testing, Third party inspection, Consulting services and Training & Certification in NDT and Welding Inspection related technologies to clients in manufacturing, processing, heat treatment, in-service inspection of nuclear, aerospace NDT, automobile, fabrication of structures, oil & gas exploration companies, petroleum refineries, cross country pipelines in India and abroad.

NDT INSTITUTE has established in 2004 by a core group of eminent NDT, Welding Inspection and Material testing professionals, Engineers and technologists with rich 15 plus years of experience with many industrial verticals. Operating from a well-equipped, gigantic, ultramodern purpose built Material Testing laboratory, NDT inspection facilities, state of art inspection and testing equipments, modern training center, 'METAL TESTING LAB' is centrally located at one of the Asia's largest industrial estates known as Ambattur Industrial Estate in Chennai , India.

Since its inception, the NDT & material testing company has been successfully serving its clients in India and abroad with high quality, cost effective and timely services. 'MTL NDT' is widely recognized and respected for its quality integrity services with technology driven resources.

NDT Institute in chennai, the Training and Human Resources Development (HRD) institute of 'NDT TRAINING INSTITUTE', is organizing and conducting world class NDT level 1, 2, Welding inspector and other materials testing, inspection technology training and certification courses. The NDT institute is recognized internationally for most experienced ASNT NDT Level III trainers, welding inspectors and material testing experts. Explore our training, certification and professional development offerings and discover a wealth of resources to help you to reach the quality targets. We have training schedules throughout the calendar year for the convenience of training delegates toenroll for courses well in advance and be sure to visit our training course calendar for India and other international training venues.

Sales & Supplies division of 'METAL TESTING LAB' is catering to needy customers and industries by supplying high quality NDT Equipments, Accessories and consumables that meet international codes, specifications and standards. Currently we sale and supply all types of NDT equipments, dye penetrant chemicals including penetrants, solvent cleaners, developers, stationery dye penetrant systems, fluorescent black light assemblies, magnetic particle testing equipments including yokes, high end machines for crack detection, powders, mpi accessories, Ultrasonic flaw detection equipments, probes, cables, calibration blocks and other NDT related and material testing lab equipments. Find more about our NDT equipments sales and supplies About NDT INSTITUTE IN CHENNAI

MTL - NDT is a Nondestructive testing (NDT), Material testing company founded in India, providing complete material testing solutions including NDT Inspection, metallurgical, welder qualification tests, mechanical testing, consultancy services to engineering industries and serving the entire world.

Experience Quality Services

The organization is established by a team of eminent metallurgical and mechanical engineering experts with more than 10 years of professional industrial experience with the prominent industries in power sector, pressure vessels, precision and heavy engineering sectors, pipe systems, storage tanks, process plants, castings, forgings, fabrication, sugar and cement industries, aerospace component manufacturing, material testing laboratories, consulting and NDT inspection companies.

The modern material testing laboratory is fully equipped with latest equipments, well experienced team of professionals for conducting materials testing, non-destructive testing in Ultrasonic testing, Magnetic particle testing, Liquid/dye penetrant testing, Visual testing, Radiographic testing, interpretation, Ultrasonic thickness gauging, Consultancy in NDT, metallurgy, welding, third party inspection services, training and certification services.

Sharing the expertise through training

With in-house ASNT NDT Level III trainers, our training center NDT Institute and Inspection Technology Ltd., is a place where our customers and participants can confidently rely on, for quality NDT Training and certification and welding inspector courses. We are committed to driving the right behaviors in our customer's operations by our world class training and certification courses. Our programs are carefully designed to give engineers, quality inspectors and technicians the skills needed to excel in the field of NDT, welding and quality related technologies.

NDT INSTITUTE IN CHENNAI expand our location worldwide by being the premier NDT, material testing and related quality services provider with high industrial standards, professional services focusing on customer satisfaction. MTL NDT will distinguish itself as a leader in redefining excellence in training, certification, consulting, trading and other customized services that enhances customers delight.

To provide world class NDT, material testing, inspection, training, consulting and other quality services and solutions with high professional integrity and reliability using technology driven resources.

.

Our main concern offers

  • Material Testing lab Services
  • Mechanical Testing
  • Calibration Testing
  • Water Testing Lab
  • NDT Equipments Sales
  • V1 V2 Block Calibration
  • NDT Services chennai in india
  • NDT JOBS PLACEMENT

PCN & ASNT NDT COURSES

1. Ultrasonic Testing

2. Radiographic Testing

3. Magnetic Particle

4. Penetrant Testing

5. Visual Testing

6. Radiographic Film Interpretation

7. Ultrasonic Thickness Measurement

Time of Flight Diffraction (TOFD)

Phased Array Ultrasonic Testing (PAUT)

1. Advanced NDT

AUT Data Interpretation

AUT Inspector Certification

Alternating Current Field Measurement (ACFM) Level 1

Alternating Current Field Measurement (ACFM) Level 2

Digital Radiography Testing Level 2

Eddy Current Testing (ET)

Eddy Current Inspection of Ferritic Welds

LRUT Pipes and Pipelines Level 1

LRUT Pipes and Pipelines Level 2

Manual (Encoded) Phased Array Inspection of Welds

Thermographic Inspection - Level 1

Time of Flight Diffraction (TOFD)

2.Aerospace only

Magnetic Particle Testing

Penetrant Testing

Radiographic Interpretation (RI) - Light & Dense Metal Welds (Part B)

Radiographic Testing (RT) - Aerospace

Ultrasonic Testing (UT) - Aerospace Training & Examination Package

3.Appreciation of NDT Techniques

Basic

Advanced

Appreciation of Advanced NDT Techniques - Week 1

Appreciation of Advanced NDT Techniques - Week 2

4.Conventional NDT

Basic Radiation Safety (BRS)

CSWIP Visual Inspector (Offshore)

Magnetic Particle Testing (MT)

Penetrant Testing (PT)

Radiation Protection Supervisor (RPS)

Radiographic Interpretation - Principles (Part A)

Radiographic Interpretation (RI) - Metal Welds (Part B)

Radiographic Interpretation (RI) - Metal Castings (Part C)

Radiographic Testing (RT) - Welds

Ultrasonic Corrosion and Erosion Monitoring

Ultrasonic Testing (UT) - Thickness Measurement

Ultrasonic Testing (UT) - Welds

Visual Testing (VT)

5.Level 3 Training (EN 473)

NDT Practitioner Level 3

6.Welding Inspection

AWS CWI to CSWIP Welding Inspector - Level 2

AWS CWI to CSWIP Welding Inspector - Level 2 (Mandarin)

CSWIP 3.0 Visual Welding Inspector - Level 1

CSWIP 3.0 Visual Welding Inspector - Level 1 (Mandarin)

CSWIP 3.0 Plus - Visual Welding Inspector with Practical Module - Level 1

CSWIP 3.1 Welding Inspector - Level 2

CSWIP 3.1 Welding Inspector - Level 2 (Mandarin)

CSWIP 3.2 Senior Welding Inspector - Level 3

SAIW Level 1 to CSWIP Welding Inspector Level 2

SAIW Level 2 to CSWIP Senior Welding Inspector Level 3

Welding Inspection Refresher - Practical and Theory

7.Welding Procedures and Welder Qualification

ASME IX Welding Standards

European Welding Standards

8.Welder Training and Qualification

Overview

9.Welding Co-ordination and Supervision

Appreciation of Engineering Quality Documentation Review

Certificate in Welding Supervision

CSWIP Welding Quality Control Co-ordinator

10.Underwater Inspection and NDT

CSWIP 3.1U NDT Inspection Diver

CSWIP 3.2U NDT Inspection Diver

CSWIP 3.3U ROV Inspector

CSWIP 3.4U Underwater Inspection Controller

Inshore Diving Tender

MMA Wet Welding to AWS D3.6 Codings

Refresher 3.1U/3.2U

Refresher 3.3U/3.4U

11.Process Appreciation

Essentials of Welding Design

Introduction to Friction Stir Welding

Introduction to Welding and NDT

MIG/MAG/FCAW

Manual Metal Arc Welding

Oxyfuel Gas Cutting - Certificate of Competence

TIG Welding

TWI Diploma in Welding Engineering

12.Plastics Welder Training and Qualification

Overview

Butt Fusion and Electrofusion Welding

Hot Gas and Extrusion Welding

Welding of Lining Membrane

13.Plant Inspection/Asset Integrity Management

API Examination Preparation Courses API 510 Pressure Vessel Inspector Examination Preparation Course

API 653 Aboveground Storage Tank Inspector Examination Preparation Course

API 570 Piping Inspector Examination Preparation Course

14.CSWIP Plant Inspector - Level 1

Part A Rules, Regulations and Duties

Part B Inspection Methods

15.CSWIP Plant Inspector - Levels 2/3

Module 2 Damage Mechanism Assessment for RBI and FFS, based on API RP 571

Module 3 Risk Based Inspection (RBI) based on API and ASME

Module 4 Fitness-for-Service (FFS) Assessment, based on API 579-1/ASME FFS-1 2007

Module 5 Weld Repair of Pressure Equipment and Piping

Module 6 Pressure Vessel Inspection, based on API RP 510

Module 7 Piping Inspection, based on API RP 570

Module 8 Aboveground Tank Inspection, based on API RP 653

Introducing BS 7910:2013

Plant Inspection Overview

Structural Integrity Assessmen

16.BGAS-CSWIP

BGAS-CSWIP Agricultural & Environmental Inspector

BGAS-CSWIP Blast Cleaning/Preparation Operative Level 5A

BGAS-CSWIP Painting Inspector Grade 2

BGAS-CSWIP Painting Inspector Grade 1

BGAS-CSWIP Painting Supervisor Level 4

BGAS-CSWIP Pipeline Welding Inspector

BGAS-CSWIP Protective Painter/Sprayer Operative Level 5B

BGAS-CSWIP Site Coatings Inspector

17.Advanced Welding Processes - Friction Stir Welding, Laser Processing

An Introduction to Industrial Laser Processing

Friction Stir Welding Operator

Fundamentals of Friction Stir Welding

18.ASNT/ACCP Level III

Basic

Magnetic Particle

Penetrant Testing

Radiographic Testing

Ultrasonic Testing

"NDT INSTITUTE & INSPECTION TECHNOLOGY LTD.," is committed to provide most effective training with the expertise gained over the past two decades in the inspection of power stations, pressure vessels, structures, engineering components, pipe systems, storage tanks and aerospace components. Our curriculum is formalized to provide custom training programs, best practices leading to gain thorough knowledge in practical Non-destructive testing.

We are providing Level I, II Training and Certification as per Recommended Practice SNT - TC-1A -2006 in the following NDT Methods.

NDT - Central Govt.Approved NABL LAB FOR NDT - The NDT Approach

The NDT INSTITUTE & INSPECTION TECHNOLOGY LTD., (NIITL) is a NDT Course Training specialises in programmed NDT courses at level I and II encompassing both practical and theoretical techniques in the NDT disciplines as listed under the NDT Course METHODS tab on this site.

Non-destructive testing, commonly abbreviated NDT course is simply defined as the testing of materials for surface or internal flaws without causing any destruction or harm to the material under test.

Non-destructive testing is a career field that is relatively obscure in the minds of the general public.

NDT COURSE TRAINING CENTER IN CHENNAI

The name seems totally self-explanatory, but most NDT professionals can definitely relate to the experience of trying to explain what non-destructive testing means to family members, friends and acquaintances.

Most students when considering career options are completely unaware that NDT is a very exciting and rewarding career field. `Career’ being the important word.

Every bit of knowledge acquired during training, experience and certification has to be productively put to use and most importantly the learning process never ends.

The NDT Course process relies on the careful approach of the technician, his dedication, thoroughness, perseverance and the usage of sound work procedures referencing codes and specifications.

As a fundamental part of the engineering, manufacturing and in-service process, NDT Course in chennai utilises the human senses of sight, touch and hearing, amplified by a broad selection of equipment and apparatus to interpret and evaluate materials. NDT course is the most widely used chemical and physical inspection method to investigate the composition of materials by means of sound waves, electrical currents, X- and Gamma rays, magnetic fields, thermal waves and tracer liquids directed into and in most cases , penetrating the materials under test.

NDT course is particularly effective at locating performance degrading conditions such as cracking, voids, inclusions, unbonded surfaces, incorrect assembly, incorrect dimension, wall thinning, porosity, incorrect coating thickness, poorly welded fabrications, defects in castings, forgings, rolled products and defects in a host of unlimited manufacturing processes.

Essentially, Non-destructive testing assists in the detection and characterisation of material deficiencies without inhibiting the parts usefulness in any way.

Founding Statement NDT COURSES IN CHENNAI ,TAMIL NADU , INDIA

‘NIITL a company with a strong NDT present and a strong NDT future.

The NDT INSTITUTE was founded in January of 2004. As we at NIITL proceed in all our efforts, with unequivocal excellence, I aim to change that opening statement, in time to include, ‘A strong NDT Past’.

Our philosophy is to continually provide thorough and attentive service to our clients bringing the utmost level of integrity to our training efforts and to strive to maintain our knowledgeable position in the ever-changing NDT world. NIITL shall remain productive and always be a contender, employing good work ethics as a foundation for success.

As the founder of the Academy I shall endeavour to instill the highest quality in all aspects of the company. As an independent NDT training facility NIITL possess the flexibility to tailor programs to meet the client’s needs. We shall be of assistance to you, and shall be continually asking ourselves, how can we advantageously improve?

Supporting the NIITL NDT Course training facility, a NDT Certification Committee has been established employing the experience, skills and knowledge of NDT Level III’s and appropriately experienced members of the NDT community in Chennai, India . NIITL - exists as an independent body and has no involvement in the training of students.

With the establishment of the NIITL in compliance with SNT-TC-1A the prime objective in the very near future is to invite and incorporate all other NDT course training facilities and Qualifying bodies in India - NABL . to work together to establish technical harmonisation of NDT course certification. This would inspire greater confidence in the resulting certification which will facilitate mutual recognition and worldwide acceptance of the national NDT Course certificates issued in India.

At NIITL and the MTL we believe in having total transparency in our NDT training Course and certification program, and openly welcome any form of official Audit by any, and all interested parties of the NDT Institute related community at any time. With pride and dynamism we aspire to become the pre-eminent NDT training facility in Chennai. When we become aware of what is possible we begin to realise that success can be achieved, that challenges can be conquered and that problems can be solved. In doing so we open up a completely new set of avenues and possibilities, for ourselves and you.

Albert Einstein said, ‘Imagination is more powerful than knowledge.’ I believe that this is true in many respects because while knowledge allows you to see things as they are, imagination allows you to see things as they could be.

Having said that I shall leave you with the official motto of our country… India, alive with possibility.

NDT COURSE IN CHENNAI (NDT DETAILS)

LIQUID PENETRANT TESTING

One of the most common ways to enhance NDT COURSE visual testing (VT) is through the introduction of highly visible penetrating liquids. These specially prepared liquids, characterized by low a viscosity, easily enter voids open to the surface when the part is dipped into or sprayed by the penetrant.

Relatively simple, inexpensive and reliable, NDT Course liquid penetrant testing (PT) is only used for detecting discontinuities open to the surface. With the correct application, it will detect discontinuities ranging in size from the large to the microscopic.

ADVANTAGES

Liquid penetrant testing:

• NDT Course in chennai is one of the more sensitive nondestructive testing methods for detecting very small surface discontinuities.

• NDT Course in chennai can be used on a wide variety of materials, including ferrous and nonferrous metals, alloys, powdered metal products, glass and some types of organic materials.

• NDT Course in chennai can be performed with relatively inexpensive, unsophisticated equipment. If the area to be tested is small, the test can be conducted with portable equipment.

• NDT Course in chennai is capable of examining all of the exterior surfaces of objects, even of complex shapes, in one operation. Other NDT - nondestructive testing methods require the probing media to be directed to a specific surface or area, whereas liquid penetrant Testing can coat the entire part. Parts that are too large for immersion can be processed by spraying the liquid penetrant materials to provide complete surface coverage.

• NDT Course in chennai is readily adapted to volume processing, permitting 100% testing. Small parts may be placed in baskets for batch processing. Specialized systems may be automated to process as many parts per hour as required.

• NDt Course in chennai magnifies the apparent size of discontinuities, making the indications more visible. In addition, the discontinuity location, orientation and approximate length are indicated on the part, making interpretation and evaluation possible.

• NDT Course in Chennai may be adjusted to provide various sensitivity levels through the proper choice of materials and processing procedures or techniques.

DISADVANTAGES AND LIMITATIONS

The PT method has several disadvantages and limitations. Inspectors using PT should note that:

• NDT Training Institute in chennai - discontinuities must be open to the surface, as well as free of foreign material that could restrict the entry of the penetrant into the discontinuity.

• NDT Training Institute in chennai - liquid penetrants, emulsifiers (liquids that combine with oil-based penetrants to make them water-washable) and some types of developers may cause skin irritation.

• NDT Training Institute in chennai - liquid penetrants may harm some nonmetallic materials, such as rubber and plastic. There is also the possibility of permanent staining of porous or coated materials.

• NDT Training Institute in chennai - some liquid penetrant materials contain volatile solvents that can produce nausea; thus, adequate ventilation is necessary to remove noticeable vapors, especially in confined areas.

• NDt Training Institute in chennai - liquid penetrants, especially in aerosol form, are flammable. Inspectors must follow manufacture’s recommendations regarding necessary personnel protective equipment when using such equipment.

NDT TRAINING CENTER IN CHENNAI

MAGNETIC PARTICLE TESTING

NDT Training Center in chennai - Magnetic particle testing (MT) is used to detect discontinuities in ferromagnetic parts – namely parts made of iron, steel, nickel, cobalt and the alloys of these materials. Ferromagnetic materials develop strong internal magnetic fields when an electric current is passed through the part. Magnetic particles are applied to the part and a discontinuity that causes a disruption in the induced magnetic field attracts the applied particles, producing an indication.

NDT Training Center in chennai - MT is a highly effective inspection tool that is sensitive to the presence of cracks, laps, seams and similar types of surface and near-surface discontinuities.

NDT Training Center in chennai - Non-relevant indications can sometimes be found near sharp transitions in test part geometry and at metallurgical anomalies introduced during welding due to localized thermal shock, usually associated with the heat-affected zone near welds. Depending on the type of discontinuity and the direction expected, test parts should be examined in two orthogonal (perpendicular) directions because discontinuities must have a major dimension perpendicular to the magnetic field lines of force in order to be detected.

ADVANTAGES

Magnetic particle testing offers the following advantages:

• NDT - low-cost, reliable method for locating surface cracks in ferromagnetic materials.

• NDT - few limitations on size and shape of part.

• NDT - particle size and sensitivity can be adjusted.

• NDT - particles may be in colour or made to fluoresce under ultraviolet radiation.

• NDT - portable if required for field use.

• NDT - can use permanent magnets if no electrical power is available.

• NDT - can use 12 V power sources (car batteries).

• NDT - fairly fast and simple application process.

• NDT - visual interpretation of indications.

• NDT - can detect subsurface discontinuities in some conditions.

DISADVANTAGES

Disadvantages of magnetic particle testing include the following:

• NDT - can be used only on ferromagnetic materials.

• NDT - large electrical currents are required for certain test applications.

• NDT - magnetic field must be properly orientated.

• NDT - correct selection and process of application of particles can severely limit sensitivity.

• NDT - too much current is often used, masking discontinuities with spurious indications.

• NDT - false indications often occur in transition areas.

• NDT - burning of parts can occur at contact points, damaging heat treatment and, in severe cases, destroying the part.

• NDT - skin burn may occur from suspension oils.

• NDT - some fire risks occur when using open tanks and oil-suspended particles.

NDT TrAINING INSTITUTE IN CHENNAI

ULTRASONIC TESTING

Ultrasonic testing (UT) is used in the testing of nearly all solid materials, such as fine-grained aluminum, steels and alloys, composites and plastics – practically any solid material where detection of internal discontinuities or thickness measurements are of most common concern.

It is also used in the detection of inter laminar separations and regions that have been improperly processed or damaged in layered composite structures.

This technique is less effective with highly in homogeneous and coarse- grained materials (such as concrete and stainless steel castings) and non-elastic materials (such as rubber and soft plastics) that tend to absorb or scatter ultrasonic energy at relatively short distances.

This form of testing has become a commonly accepted approach to wall thickness measurement when access is limited to one side of the material. It is used in the detection and sizing of internal reflectors of ultrasonic pulses and thus is found in the testing of welds, forgings and raw materials in the form of plate, rod, pipe and similar simple geometrical shapes.

ADVANTAGES

Advantages of ultrasonic testing include:

• NDT - high sensitivity to the discontinuities that are most critical to structural integrity. For example, lack of fusion and incomplete penetration in welds are commonly detected. Also, cracks in both welds and bulk material are often very easy to detect.

• NDT - highly portable equipment, which is well suited to field inspection and inspection of in-service structures.

• NDT -application to a broad range of materials.

• NDT -in many cases, the ability to inspect very thick material, as well as the ability to detect discontinuities as small as 0.4 mm (0.016 in.) in diameter.

• NDT -in general access to only one surface is required.

• NDT -results are generated instantly with little or no processing time.

DISADVANTAGES

• Ultrasonic testing has several disadvantages and limitations. It should be noted that:

• inspection of complex shapes is very difficult.

• interpretations of UT indications require a high degree of operator training, experience and skill.

• there is a lack of definitive sizing capability, especially for diffuse discontinuities such as porosity or stress-corrosion cracking.

• discontinuities must be favorably orientated with respect to an accessible scan surface.

• a couplant, typically a liquid, must be placed on the scan surface in order for the sound to enter the part.

• typically no permanent record, comparable to a radiograph, is produced.

NDT COURSE IN CHENNAI

RADIOGRAPHIC TESTING

Inspection techniques using radiographic testing (RT) are some of the most common approaches to visualizing the internal structures of components, materials and assemblies. The approach requires a source of electromagnetic radiation that can penetrate the item being examined during exposure (the time the item is illuminated by the radiation).

Applications for RT are found throughout manufacturing and field-service environments. Raw materials are examined for the presence of internal discontinuities (castings, forgings); fabrications and assemblies are examined for induced discontinuities (welds) and misalignments or absence of internal parts; and inservice inspections use RT for detecting and assessing time-dependant degradation, such as corrosion, cracking and environmental damage.

ADVANTAGES

Radiographic testing provides the following advantages:

• NDT - can easily locate internal structural discontinuities using visual comparison with known geometric features of the test object.

• NDT - is applicable to most classes of materials.

• NDT - is considered by many to be the most universal approach to volumetric examination.

• NDT - yields a visual rendition of internal voids and fabrication errors that is readily interpretable.

• NDT -provides a permanent record of the inspection, including evidence of the sensitivity of the test when the image quality indicators (IQIs) are used.

• NDT - is capable of detecting local changes in thickness and density on the order of 1%, as measured along the line of sight of the X-ray beam.

• NDT - can provide a digital record of the test object for subsequent display on a computer monitor. DISADVANTAGES

Some disadvantages and limitations of radiographic testing include the following:

• NDT - it is a relatively expensive method of nondestructive testing.

• NDT - it is impractical to use on specimens of complex geometry.

• NDT - isolated local discontinuities, with in-line dimensions much less than 2% of the total thickness, are usually not detected.

• NDT - the specimen must lend itself to two-sided accessibility.

• NDT - laminar type discontinuities are often undetected by radiography because they are aligned transverse to the path of radiation.

• NDT - it requires highly trained and skilled personnel.

• NDT - operating licenses issued by state and federal agencies are required.

NDT TRAINING SCHOOL IN CHENNAI

EDDY CURRENT TECHNIQUE

NDT COURSE IN CHENNAI One of the more widely practiced ET techniques is eddy current testing. The flow of eddy currents is affected by fissures, constrictions or other discontinuities that cause distortions in the cross section through which the current is made to flow. Thus, the eddy current technique is useful for detecting the wall thickness of thin materials as well as measuring localized discontinuities. The thickness of the part must be within the depth of penetration (referred to as the skin depth) of the eddy currents and is dependent upon material properties and operating frequency. It is usually less than 0.635 cm (0.25 in.) and may be very much less, particularly for ferromagnetic materials.

ADVANTAGES

• NDT - Advantages of eddy current testing include the following:

• NDT - provides instantaneous results.

• NDT - uses portable equipment that may be readily adapted to automation.

• NDT - causes no damage to the material.

• NDT - presents no health hazards to the technician.

• NDT - is intrinsically safe as a testing tool, requiring only the coupling of an alternating magnetic field with the component under test to provide the interrogatory medium.

DISADVANTAGES

• NDT - Eddy current testing is affected by the following limitations:

• NDT - testing is limited to those metals and carbon fiber composites that are conductors of electrical currents.

• NDT - when the test part is composed of a ferromagnetic material, the depth of penetration into the material is vastly reduced.

• NDT - although discontinuities perpendicular to the surface being scanned are readily detected, discontinuities parallel to the surface, such as laminations, are generally not detected.

• NDT - in ferromagnetic materials, conditions such as work hardening and heat treating tend to introduce large variations in detected signals and may obscure the responses of most interest.

• NDT - Through the use of magnetic saturation techniques, however, many of these kinds of limitations can be removed.

NDT INSTITUTE AND INSPECTION TECHNOLOGY LIMITED.,

VISUAL TESTING

Throughout manufacturing and field inspection, visual testing (VT) is the most widely used NDT method.

The presence of a multitude of potential problem areas can be identified by knowledgeable observers, assisted by devices that magnify, qualify or quantify the conditions being evaluated.

WELCOME TO OUR NDT TRAINING INSTITUTE

"INSTITUTE OF NDT" NDT TRAINING INSTITUTE (METAL TESTING LAB)AWARDED CENTRAL GOVERNMENT APPROVED CERTIFIED FOR NON DESTRUCTIVE TESTING NDT -NDT TRAINING INSTITUTE IN CHENNAI, TAMIL NADU, INDIA.

OUR MAIN CONCERN METAL TESTING LAB IS AN ISO 9001:2008 Certified & NABL – Accredited (Dept.of science and Technology.Government of India) Company in India for NDT TESTING SERVICES, ASNT LEVEL I AND II COURSE CERTIFICATION , We expertise in NON DESTRUCTIVE TESTING, MATERIAL TESTING LABORATORY, WATER TESTING LAB SERVICES, CALIBRATION TESTING SERVICES and THIRD PARTY INSPECTION & CONSULTING SERVICES, NDT TRAINING & CERTIFICATION FOR NDT and NDT INSPECTION SERVICES related technologies to clients and NDT JOBS IN CHENNAI,TAMIL NADU,INDIA, MALAYSIA, SINGAPORE, and All the COUNTRIES.

(UT I) Ultrasonic Testing Level I

Overview

Ultrasonic Testing is a more advanced NDT Method. This method is able to find subsurface discontinuities in a wide range of different materials.

Duration

• Course - 10 Days (80 hours)

• Examination - 2 Days (16 hours)

Outcome

Successful candidates shall be awarded with a Level Qualification in accordance with ASNT standard ANSI/ASNT CP-105-2006 and ASNT recommended practice SNT-TC-1A.

Course content

Theory

• Ultrasonic principles and equipment controls

• Wave propagation, reflection and refraction

• Couplants, material characteristics, beam spread

• Attenuation, impedance and resonance

• Angle beam inspection with UT calculator

• Transducers and reference blocks

• Immersion inspection, contact testing, longitudinal and shear waves

• Non-relevant ultrasonic indications

• Classification of discontinuities

• Identification and comparison of discontinuities

Practical

• Set up and calibrate the equipment to a technique sheet

• Scan a sample, identify discontinuities and complete a report form

Examination

IN ORDER TO PASS THE EXAMINATION, THE CANDIDATE SHALL BE REQUIRED TO SCORE A MINIMUM AGGREGATE OF 80%.

Successful students will be able to:

• Identify, recognise and select the correct equipment to perform the inspection

• Set up and be competent to use the equipment

• Conduct an examination on test samples

• Recognise and identify defects on various samples

• Complete a standard report form

(UT II) Ultrasonic Testing Level II

Overview

Ultrasonic Testing is a more advanced NDT Method. This method is able to find subsurface discontinuities in a wide range of different materials.

Duration

• Course - 10 Days (80 hours)

• Examination - 2 Days (16 hours)

Outcome

Successful candidates shall be awarded with a Level I Qualification in accordance with ASNT standard ANSI/ASNT CP-105-2006 and ASNT recommended practice SNT-TC-1A. Course content

Theory

• Simple vibrations and periodic motion

• Acoustic spectrum

• Modes of propagation, velocity, frequency and wavelength

• Generation and detection of ultrasonic waves

• The cathode ray tube and calibration standards

• Defect sizing and evaluation techniques

• Inspection standards and reporting

• Selection of test techniques

• Interpretation of code requirements and acceptance

Practical

• Set up the equipment, calibrate and carry out a full scan on various samples

• Compile technique sheets for each sample tested

• Identify defects

• Compile written instruction for Level 1 to follow

• Test samples

• Interpret and evaluate the findings and compile reports

Examination

IN ORDER TO PASS THE EXAMINATION, THE CANDIDATE SHALL BE REQUIRED TO SCORE A MINIMUM AGGREGATE OF 80%.

Successful students will be able to:

• Organise and select the necessary equipment for a given application

• Evaluate and advise on the possibilities and limitations of the method

• Execute and supervise practical testing under workshop and field conditions

• Write instructions for approval that comply with a given code, standards or specifications

• Write technique sheets to instruct Level 1 operators

• Record testing data and acceptability results

(MT) Magnetic Particle Testing (Level I & II, Combined Course)

Overview

This course usually marks the start in a NDT Career, as Magnetic Particle Testing is the most reliable and widely used NDT Method of testing for surface breaking discontinuities in Ferro-Magnetic materials.

Duration

• Course - 7 Days (56 hours)

• Examination - 1 Day (8 hours)

Outcome

Successful candidates shall be awarded with a Level II Qualification in accordance with ASNT standard ANSI/ASNT CP-105-2006 and ASNT recommended practice SNT-TC-1A.

Course content

Theory

• Introduction

• Principles of Magnetic Particle Testing

• Electrically induced magnetic fields

• Magnetizing current characteristics

• Magnetic field distribution in and around magnetic and nonmagnetic conductors

• Current requirements

• Magnetic particle equipment

• Magnetic particle applications

• Classifications of Discontinuities

• Test Procedures and Standards

Practical

• Selection and Calibration of Equipment

• Compilation of Work Instructions and Technique Sheets in accordance with predetermined Standards

• Perform Visible and Fluorescent Tests

• Perform Magnetic Particle Testing on Welds, Castings and Forgings

• Complete Report Forms

• Interpretation and Evaluation of findings in accordance with multiple Specifications

Examination

IN ORDER TO PASS THE EXAMINATION, THE CANDIDATE SHALL BE REQUIRED TO SCORE A MINIMUM AGGREGATE OF 80%.

Successful students will be able to:

• Organise, select and calibrate the necessary equipment for a given application

• Evaluate and advise on the possibilities and limitations of a testing method

• Execute and supervise practical testing under workshop and field conditions

• Record testing data and evaluate acceptability of results according to specific acceptance criteria

• Compile a written instruction for approval that complies with a given code, standard or specification

• Record testing data and evaluate acceptability of results according to codes, standards and specifications

(PT) Liquid Penetrant Testing (Level I & II, Combined Course)

Overview

This course usually marks the start in a NDT Career, as Liquid Penetrant Testing is one of the most versatile NDT Methods for finding surface breaking discontinuities in a wide range of different Materials.

Duration

• Course - 7 Days (56 hours)

• Examination - 1 Day (8 hours)

Outcome

Successful candidates shall be awarded with a Level II Qualification in accordance with ASNT standard ANSI/ASNT CP-105-2006 and ASNT recommended practice SNT-TC-1A.

Course content

Theory

• Introduction

• Liquid Penetrant Processing

• Liquid Penetrant Testing Method

• Liquid Penetrant Testing Equipment

• Selection of Method

• Interpretation and Evaluation

• Liquid Penetrant Process Control

• Test Procedures and Standards

Practical

• Selection and Calibration of Equipment

• Compilation of Work Instructions and Technique Sheets in accordance with predetermined Standards

• Perform Visible and Fluorescent Tests

• Perform Liquid Penetrant Testing on Welds, Castings and Forgings

• Complete Report Forms

• Interpretation and Evaluation of findings in accordance with multiple Specifications

Examination

IN ORDER TO PASS THE EXAMINATION, THE CANDIDATE SHALL BE REQUIRED TO SCORE A MINIMUM AGGREGATE OF 80%.

Successful students will be able to:

• Organise and select the necessary equipment for a given application

• Evaluate and advise on the possibilities and limitations of a testing method

• Execute and supervise practical testing under workshop and field conditions

• Compile a written instruction for approval that complies with given code, standard or specification

• Record testing data and evaluate acceptability of results according to codes, standards and specifications

(WT) (UTM) Ultrasonic Wall Thickness Testing

Overview

This course usually marks the start in a NDT Career; Ultrasonic Wall Thickness Testing is one of the most widely used methods in establishing the wall thickness of a wide range of different Materials.

Duration

• Course - 4 Days (32 hours)

• Examination - 1 Day (8 hours)

Outcome

Successful candidates shall be awarded with a Level II (Limited) (A-Scan & Digital) Qualification in accordance with ASNT standard ANSI/ASNT CP-105-2006 and ASNT recommended practice SNT-TC-1A.

Course content

Theory

• History of ultrasonics

• Theory of ultrasound

• Attenuation and reflection

• Principle of thickness gauging

• Transducers and couplants

• A-Scan and digital thickness gauging

• Sources of error

• Applications

• Reporting

Practical

• Perform wall thickness measurements of samples using ultrasonic and other mechanical methods

• Selection and Calibration of Equipment

• Complete Report Forms

Examination

IN ORDER TO PASS THE EXAMINATION, THE CANDIDATE SHALL BE REQUIRED TO SCORE A MINIMUM AGGREGATE OF 80%.

Successful students will be able to:

• Demonstrate capability of measuring wall thickness to within a specific tolerance

• Recognise and correct problems encountered with wall thickness testing

• Complete a detailed report and sketch

(RT I) Radiographic Testing Level I

Overview

Radiographic Testing is a more advanced NDT Method. This method is able to find subsurface discontinuities in a wide range of different materials.

Duration

• Course - 10 Days (80 hours)

• Examination - 2 Days (16 hours)

Outcome

Successful candidates shall be awarded with a Level I Qualification in accordance with ASNT standard ANSI/ASNT CP-105-2006 and ASNT recommended practice SNT-TC-1A.

Course content

Theory

• Introduction and principles of radiography

• Structure of the atom

• X-ray and gamma ray equipment

• Interaction of radiation with matter

• Sensitivity, density and contrast

• Radiographic screens, cassettes and exposure charts

• Exposure techniques and discontinuities

• Radiation hazards, measurement of radiation and protection from exposure

• Regulatory requirements and safe use of radioactive material

Practical

• Set up the equipment, expose a sample, develop the film and interpret the results

Examination

IN ORDER TO PASS THE EXAMINATION, THE CANDIDATE SHALL BE REQUIRED TO SCORE A MINIMUM AGGREGATE OF 80%.

Successful students will be able to:

• Identify, recognise and select the correct equipment to perform radiographic exposure

• Set up the equipment to conduct a radiographic exposure

• Carry out the radiographic exposure

• Maintain a darkroom and process a radiographic film

• Determine density and sensitivity

• Recognise and identify artefacts and defects on radiographs

• Complete a standard report form

(RT II) Radiographic Testing Level II

Overview

Radiographic Testing is a more advanced NDT Method. This method is able to find subsurface discontinuities in a wide range of different materials.

Duration

• Course - 10 Days (80 hours)

• Examination - 2 Days (16 hours)

Outcome

Successful candidates shall be awarded with a Level II Qualification in accordance with ASNT standard ANSI/ASNT CP-105-2006 and ASNT recommended practice SNT-TC-1A.

Course content

Theory

• Radiation and radiation machines

• Nuclear reactions and radioisotopes

• Interaction of radiation with matter and control of scattered radiography

• Radiographic screens and special radiographic techniques

• Processing facilities and processing of films

• Viewing and interpretation of radiographs

• Radiation protection

• Interpretation of code requirements and acceptance criteria

• Preparation of technique sheets and written instructions

Practical

• Perform a test using a technique sheet compiled by the candidate

• Compile a written instruction and record the findings of the test

• Set up the equipment, expose a sample, develop the film and interpret the results

Examination

IN ORDER TO PASS THE EXAMINATION, THE CANDIDATE SHALL BE REQUIRED TO SCORE A MINIMUM AGGREGATE OF 80%.

Successful students will be able to:

• Organise and select the necessary equipment for a given application

• Evaluate and advise on the possibilities and limitations of the method

• Execute and supervise practical testing under workshop and field conditions

• Write instructions for approval that comply with code requirements

• Write technique sheets for Level 1 operators to a given code or specification

• Record testing data and evaluate acceptability
